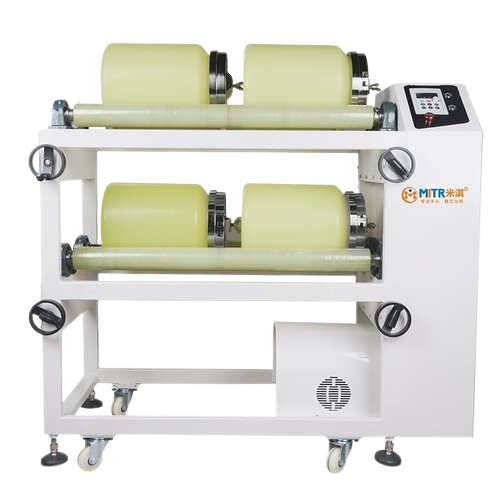

GMS5-4 Four Stations Roller Jar Mill


The GMS5-4 Four Stations Roller Jar Mill is ideal for laboratory and small-scale material grinding and mixing across various industries. With flexible multi-station operation, it’s a key tool for slurry preparation and adaptable to different batch sizes.

Compare

GMS5-4 Four Stations Roller Jar Mill is widely used in electronic materials, ceramics, coatings, glass powder, fluorescent materials, non-metallic minerals, explosives, magnetic materials, equipment batteries, biological cultivation, food packaging, battery materials and other materials in the process of grinding and mixed. The light jar mill is suitable for laboratory and small batch production. Because of it flexible and convenient operation, but also in some small business production.

The mixing roller jar mill is a an indispensable device for the slurry preparation process and in multiple fields. The main features can be worked in a single station, double station, four station, eight station. You could choose it according to your actual application requirement. This flexibility option is one of the advantage of this machine. It could be changeable for the working station. Such as: It could be used between 1-8 stations for the 8 stations machine, not restricted by odd or balance requirements.

Technical Specification of GMS5-4 Four Stations Roller Jar Mill

Model GMS1-4 GMS3-4 GMS5-4 GMS10-4 GMS10-4B GMS20-4 GMS30-4
Jar Capacity 500ml-1L 500ml-3L 500ml-5L 500ml-10L 500ml-10L 500ml-20L 500ml-30L
Roller Diameter*Length(mm) Φ38*(185*2) Φ58*(250*2) Φ58*(290*2) Φ68*(349*2) Φ68*(349*2) Φ78*(424*2) Φ78*(424*2)
Power 0.55kw 0.55kw 0.75kw 1.5kw 1.5kw 3kw 4kw
Adjusted Space By Hand 62-160 76-230 67-280 67-230 67-230 30-340 35-290
Diameter of Jar Φ50-Φ160 Φ70-Φ180 Φ70-Φ260 Φ60-Φ280 Φ60-Φ280 Φ60-Φ320 Φ60-Φ360
Layers/Station 1/4 Stations
Roller Speed 5-1000 5-1000 5-1000 5-1200 5-720 5-720 5-720
Transmission Mode Belt
Roller Nos 3 3 3 3 4 4 4
