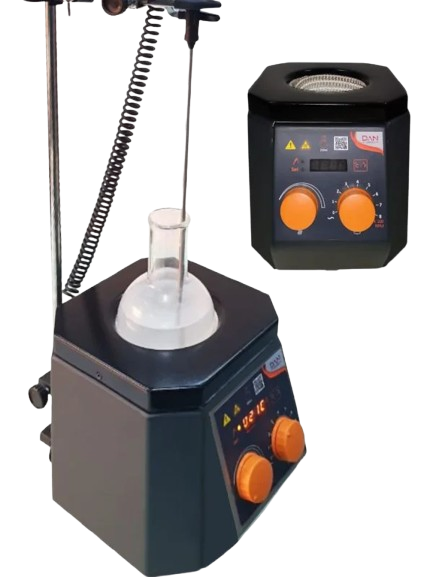

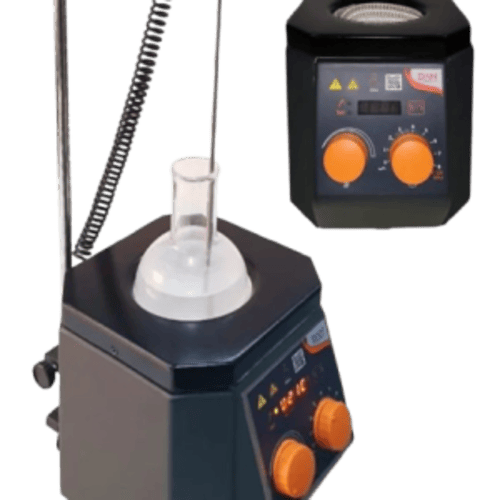

The Digital Heating Mantle with Stirrer is a highly efficient and accurate laboratory device designed to perform both simultaneous heating and magnetic stirring of samples in round-bottom flasks. It features digital temperature and stirring speed control, ensuring enhanced precision and reproducibility in experiments. Equipped with a microprocessor-based PID temperature controller, the unit allows for exact thermal regulation and real-time display of both set and actual values. The stirring mechanism uses a quiet, brushless DC motor to deliver stable and adjustable magnetic mixing with minimal noise and vibration. This model is ideal for chemical synthesis, academic research, pharmaceutical development, and quality control testing.
Feature of Heating Mantle with Stirrer (Digital)
- Designed for advanced Laboratory usage
- Control the temperature of subject in flask using probe
- Temperature control with digital display
- Celsius/Fahrenheit selection
- Mantle/Probe selection
- SS & Aluminium Construction
- For Round Bottomed Flasks as per DIN – 12347
- Glass fibre yarn knitted mantle provides uniform heating to flasks
- Innovative spill collect system enables collection of spillage in cares of breakage of flasks
- Fewer parts give longer life
- Easy to use and maintains
- Provision to attach accessories
- Electronic stir speed control
Technical Specification:
| Heating Mantle Body | : Metallic SS & Aluminium |
| Heating Mantle Material | : Glass Fibre Yarn |
| Mantle Capacity | : To hold standard Round Bottom Flasks upto 5000ml |
| Heating Control | : Microprocessor based PID |
| Stir Control | : Microprocessor based |
| Temperature Range | : Approx. 400?C |
| Control Accuracy | : 10% |
| Weight | : 2.5Kg |
| Variable Speed Range | : ~800 RPM |
| Permissible Ambient Temperature | : 5-40? C |
| Permissible relative moisture | : 80% |
| IP Class | : 10 |
