Components of a Holographic Apparatus

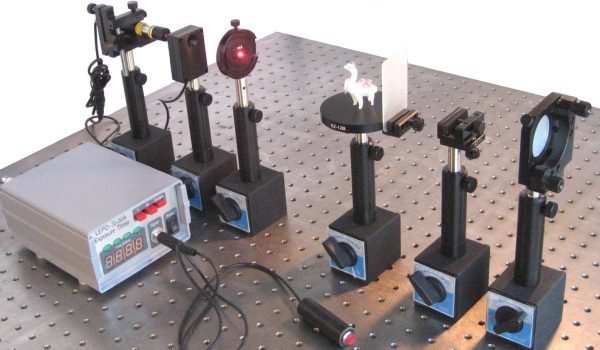

A typical holography setup consists of the following components:
1. Laser Source
- A coherent, monochromatic laser (e.g., He-Ne laser, Diode laser).
- Common wavelengths: 632.8 nm (He-Ne laser), 532 nm (Green DPSS laser).
2. Beam Splitter
- Splits the laser beam into two parts:
- Object Beam – Illuminates the object.
- Reference Beam – Directly interferes with the object beam on the recording medium.
3. Mirrors & Lenses
- Mirrors direct the laser beams to different paths.
- Lenses expand and collimate the beams for uniform illumination.
4. Object & Holographic Plate (Recording Medium)
- The object is illuminated by the object beam.
- The holographic plate (photosensitive film or digital sensor) captures the interference pattern between the object and reference beams.
5. Vibration Isolation Table
- A stable platform to reduce external vibrations, ensuring high-quality holograms.
6. Processing Chemicals (for Analog Holography)
- If using photographic plates, chemical development is required.
- Digital holography does not require chemical processing.
Working Principle
-
Recording the Hologram
- A coherent laser is split into two beams.
- The object beam illuminates the object, scattering light to the holographic plate.
- The reference beam directly reaches the plate.
- The interference of these two beams creates a unique pattern recorded on the plate.
-
Reconstructing the Image
- When the developed hologram is illuminated with the same reference beam, a 3D image of the object appears.
- The reconstructed image retains depth, parallax, and perspective.
Applications of Holography
- Data Storage – Holographic memory stores vast amounts of information.
- Security & Anti-Counterfeiting – Holograms on credit cards, passports, and IDs.
- Medical Imaging – 3D holography in X-rays and MRIs.
- Microscopy & Interferometry – Used in biomedical research and optical testing.
- Entertainment & Display Technology – Holographic projections and augmented reality.
