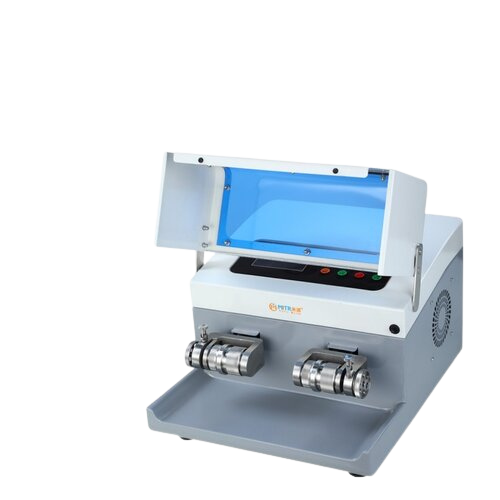

Horizontal tissue grinder


The Horizontal Tissue Grinder enables simultaneous, efficient grinding of multiple animal or plant tissue samples with consistent results. Ideal for DNA/RNA analysis, it offers high reproducibility, time savings, and improved sample processing efficiency.

Compare

Horizontal tissue grinder can simultaneously determine effective, accurate crushing conditions (frequency and time) for 2 x5,2×10 or even more animal and plant tissues, providing high reproducibility and high-quality results for multiple sample crushing preparation, thus providing a reliable analytical basis for the next dna/rna analysis process or for the extraction of any plant animal cells. This one-time characteristics of multiple sample breakage not only ensure the repeatability results of sample treatment, but also save time and improve the treatment efficiency of samples.

Feature of Horizontal tissue grinder

  • Rapid and efficient grinding and homogenization, short grinding time, rapid sample preparation for XRF analysis.
  • Multi sample handling capacity, adapter grinding, high throughput grinding for biological samples.
  • Grinding time and vibration frequency can be digitally set and displayed, grinding results are highly reproducible.
  • Various materials, volumetric grinding jars are available, wide application range.
  • Lossless wet grinding, unique rotary tight, sealed grinding jar design.
  • Comfortable low temperature grinding, Can be used for thermo sensitive materials without long freezing process, liquid nitrogen consumption is very small.

Technical Specification

Model MM100 MH100
Material feed size ≤8mm ≤8mm
Final fineness About 5μm ≤3um
The capacity 0.5/2ml*48*2 30ml*2/50ml*2
Vibration frequency 60-1800r/min/30hz 60-2400r/min/40hz
Selection of grinding tools adapter, grinding jar
Material of grinding tools Reagent tube, Stainless steel, zirconia, agate, tungsten carbide, Teflon, nylon
Power of motor 400W 400W
Dimension mm 390*477*283 390*477*283
Voltage 200-240v,50-60Hz 200-240v,50-60Hz
Grinding time Continuous 3-5 minutes Continuous 15-30 minutes
Number of micropores treated 2ml*24 bits 2ml*24 bits
Application field biology materials
MH100 tissue grinder running for 30 minutes must be stopped, the energy is too high, easy to break the shaft;
MM100 tissue grinder for 5 hours continuous operation.
