HP550-S LED Hotplate

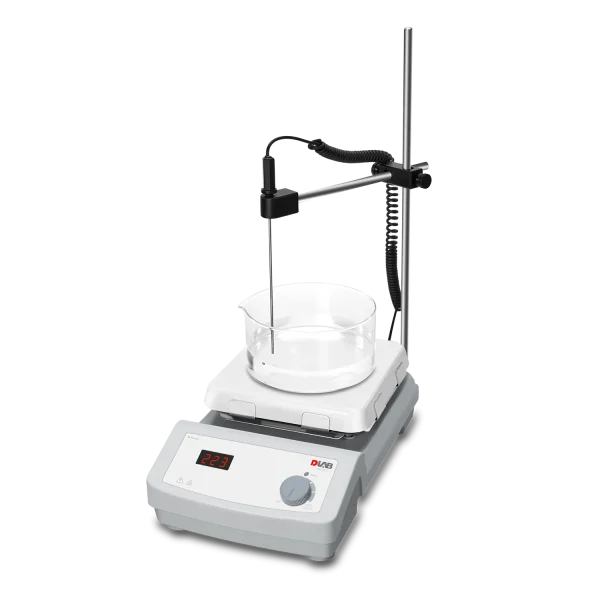

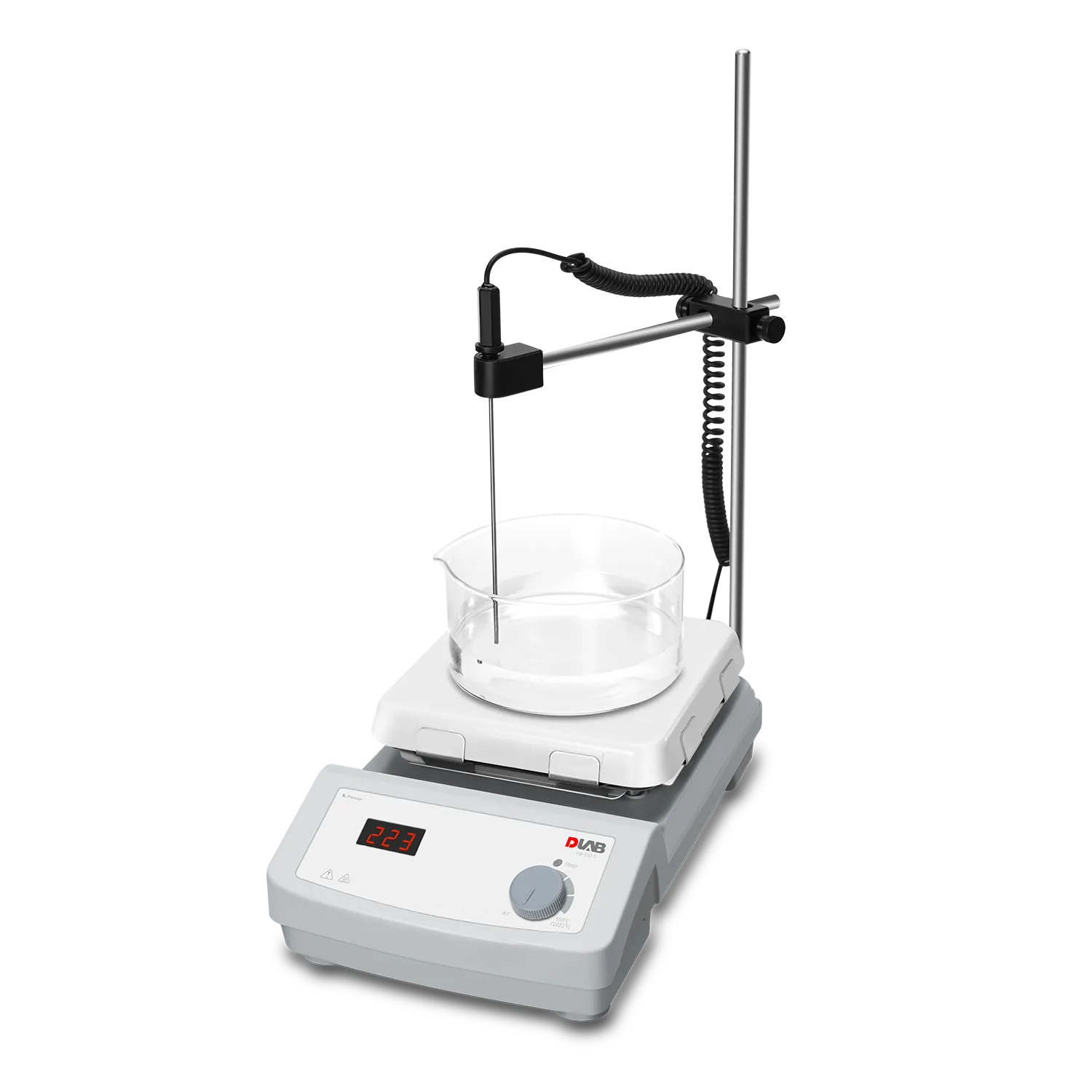

DLAB HP550-S LED Hotplate – Precision Heating for Laboratory Applications

The DLAB HP550-S LED Hotplate is a high-performance laboratory hotplate designed to meet the rigorous demands of modern laboratories. With a maximum temperature of 550°C and a spacious 7-inch square glass ceramic work plate, this DLAB hotplate offers precise and uniform heating, making it ideal for applications such as chemical synthesis, sample preparation, and general laboratory heating tasks.

Equipped with an intuitive LED display, the HP550-S provides real-time temperature monitoring, ensuring accurate control over experimental conditions. The hotplate features a heating temperature range from room temperature to 550°C, adjustable in 5°C increments, with a control accuracy of ±10°C. For enhanced precision, an external temperature sensor (PT1000) can be connected, offering an accuracy of ±0.5°C.

Safety is paramount in the design of the HP550-S. The hotplate includes separate safety circuits with a fixed safety temperature of 580°C to prevent overheating. Additionally, a “HOT” warning indicator flashes when the work plate temperature exceeds 50°C, even after the unit is turned off, alerting users to potential burn hazards.

The glass ceramic work plate not only ensures efficient heat transfer but also offers excellent chemical resistance, making it suitable for use with a wide range of reagents and solvents. The hotplate’s robust construction and IP21 protection class rating provide durability and protection against accidental spills and dust ingress.

With its compact dimensions of 215 × 360 × 112 mm and a weight of 4.5 kg, the HP550-S is designed to fit seamlessly into any laboratory workspace. Its power consumption is rated at 1010W, with a heating power of 1000W, and it operates on a voltage frequency of 100–120/200–240V, 50/60Hz. ED Hotplate provides the precision, safety, and reliability required for effective laboratory work.

The HP550-S is a reliable and efficient LED hotplate built for everyday laboratory heating needs. Designed with a powerful 550°C maximum temperature and a durable ceramic-coated work plate, it provides fast and uniform heating with excellent chemical resistance and thermal stability.

Its intuitive LED interface allows for easy and accurate temperature setting, making it a user-friendly choice for labs focused on simplicity and functionality. The HP550-S features essential safety mechanisms including a hot surface warning and over-temperature protection, ensuring both operator and sample safety during operation.

Ideal for academic, industrial, and research labs, the HP550-S offers a balance of performance, reliability, and safety in a cost-effective, compact footprint.
