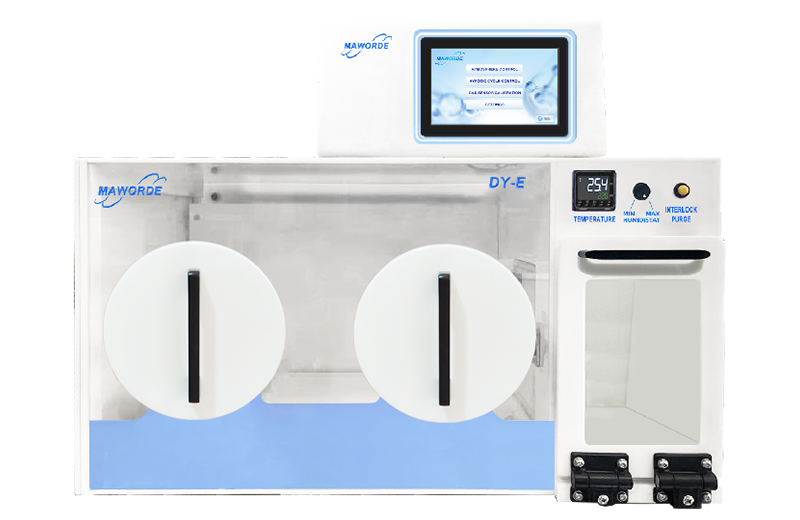

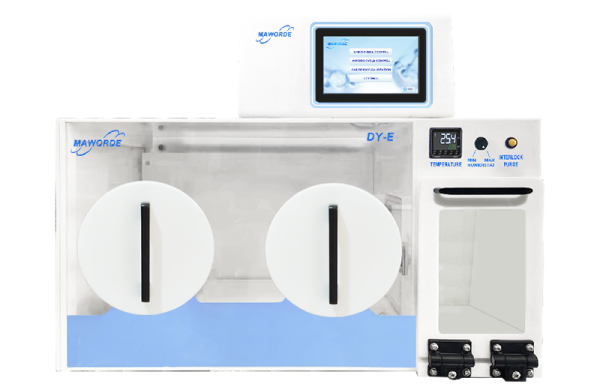

Hypoxia Glove Box DY-E


The Hypoxia Glove Box DY-E is a sealed, controlled environment workstation designed for experiments requiring precise oxygen, CO₂, and humidity control. Ideal for cell culture, hypoxia-related studies, and anaerobic research, it ensures a contamination-free, low-oxygen workspace.

Compare

The Hypoxia Glove Box DY-E is a high-performance laboratory workstation engineered to provide a tightly sealed, controlled environment for experiments requiring hypoxic, anaerobic, or gas-sensitive conditions. Designed with precision and user safety in mind, the DY-E allows researchers to perform delicate cell cultures, biochemical studies, and hypoxia-related experiments without exposing samples to atmospheric contamination. Its real-time gas regulation system enables accurate control of O₂ and CO₂ levels, supporting advanced research in oncology, neuroscience, and regenerative medicine.

The DY-E features a fully enclosed glove box with integrated glove ports, allowing hands-on manipulation of samples without compromising environmental stability. The interlock entry system ensures smooth material transfer while maintaining internal conditions. Equipped with USB data logging, real-time monitoring, and internal lighting, the unit provides both functionality and user convenience. Additional features such as activated carbon filtration, internal power sockets, and password-protected access enhance the reliability and usability of the system. The Hypoxia Glove Box DY-E is an ideal solution for laboratories seeking a secure, high-precision hypoxic environment with full experiment control and data traceability.

Features

  • Fully Sealed Glove Box Design: Ensures airtight, contamination-free operation

  • Real-Time O₂/CO₂ Monitoring: Continuous and precise gas level control

  • Integrated Glove Ports: For safe and flexible experiment handling

  • Temperature & Humidity Control

  • Data Logging System: USB export and live graphing

  • Interlock Entry System: Maintains internal stability during sample transfers

  • Internal Socket & Lighting: For in-chamber power and visibility

  • User Access Control: Multi-tiered password protection

  • Activated Carbon Filtration: Enhances air purity inside the chamber

Technical Specifications

Parameter Specification
Chamber Type Fully sealed glove box
Internal Dimensions (W×D×H) 500 × 460 × 420 mm
External Dimensions (W×D×H) 860 × 660 × 600 mm
Gas Supplies N₂ / CO₂ / Air (customizable)
O₂ Control Range 0.1% – 20.9%
CO₂ Control Range 0.1% – 20% (optional)
Temperature Control Optional module
Humidity Control Optional module
Glove Ports 2 airtight glove access ports
Real-Time Monitoring Available (O₂, CO₂)
Data Logging USB-based, real-time graphing
Entry System Interlock chamber with purge cycle
User Access Three-tiered password protection
Internal Features Power socket, LED lighting
Filtration Activated carbon sachet
Alarm System Cylinder low pressure, environmental alerts
