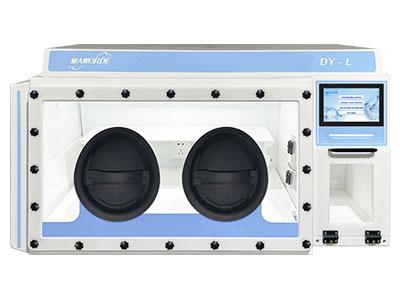

The Maworde Hypoxia Workstation (DY-L) is a leading hypoxia solution, seamlessly integrating culture, operation, and observation in a singular space. The DY-L hypoxic workstation excels in cell and tissue culture research, delivering full automatic control over oxygen, carbon dioxide, temperature, and humidity. Crafted for precision, it establishes a stable hypoxic environment ideal for a wide spectrum of research fields, such as tumor research, neurology, stem cell investigations, and cardiovascular studies.
The DY-L workstation allows you to precisely adjust O2 levels from 0.1% to 23% and CO2 levels from 0.1% to 20%, both adjustable in 0.1% increments. It also regulates humidity and temperature carefully while providing real-time pressure monitoring.
The hypoxic workstation offers various sizes and options, including Hypoxic Cycle, Remote Control, and Cable Port.
Designed to meet the most stringent demands of cell culture research, this workstation guarantees precise control over environmental variables, ensuring consistently reliable results.
Key Features:
- O2 control: 0.1% – 25.0%, in 0.1% increments
- CO2 control: 0.1% – 20.0%, in 0.1% increments
- Temperature control: From 3°C above ambient to 45°C, in 0.1°C increments
- Humidity control: Room humidity to 85%, in 1% increments
- Programmable multi-stage hypoxic cycles as an option
Optional Features:
- Advanced Gas Circulation Design:
√ Ensures an exceptional level of homogeneity in gas distribution throughout the workstation
√ Consistent airflow contributes to accurate and reliable experimental outcomes
√ HEPA 14 filter available for superior particle removal and a pristine environment - Seamless Entry System (SES):
√ An efficient vacuum pump grants direct workstation access in 10-12 seconds
√ Operable with lab gloves, ensuring seamless and convenient handling
√ Glove port caps easily “park” in special holders, optimizing workspace utilization - Innovative Acrylic Construction:
√ Panels molded from a single piece of acrylic to reduce condensation and microbial growth
√ Improved acrylic Integrity with Annealing Process for enhanced durability - Dual Pressure Relief System:
Equipped with a classic pressure relief valve and a special pressure relief tank for enhanced safety and precise pressure regulation -
Programmable Hypoxic Cycles: Automate O₂ and CO₂ concentration adjustments for efficient sample stimulation.
-
Remote Monitoring and Alarms: Monitor O₂, CO₂, temperature, humidity, gas cylinder pressure, and gas leaks remotely.
-
High-Temperature Chamber: Provides controlled environments up to 55°C for specialized experiments.
-
Micro-Pressure Chamber: Offers precise regulation of static pressure ranging from 0 to 35 KPa (0 to 5 PSI), with an adjustment accuracy of 0.1 KPa.
-
Anaerobic System: Combines hypoxia and anaerobic conditions within a single workstation.
Specifications
| Internal Dimension (W/D/H mm) | 800 / 460 / 420 |
| External Dimension (W/D/H mm) | 1160 / 660 / 600 |
| Capacity (petri dishes) | 520 / 400 |
| Interlock Capacity | 44 × 90 mm Petri dishes |
| Gas Supplies | N₂ / CO₂ / Air; N₂ / CO₂ |
| Real-Time Gas Control | Available |
| Temp & Humidity Control | Available |
| Real-Time Pressure Detection | Available |
| Quick Sensor Calibration | Available |
| HEPA Filtration System | Available |
| Seamless Entry System (SES) | Available |
| Detachable Front Panel | Available |
| Real-Time Data Graphing | Available |
| Unique Interlock Purge | Available |
| Three-Tiered User Password | Available |
| Dual Pressure Relief System | Available |
| Data Logging System | Available |
| Cylinder Low Pressure Alarm | Available |
| Internal Socket & Light | Available |
| Activated Carbon Sachet | Available |
