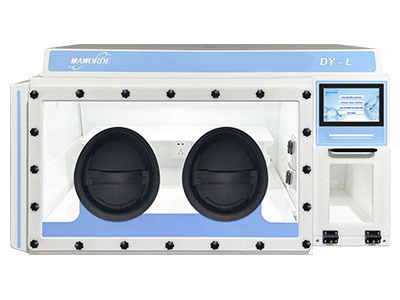

The Maworde Hypoxia Workstation (DY-XL) excels in cell and tissue culture research, delivering impeccable control over oxygen, carbon dioxide, temperature, and humidity. Crafted for precision, it establishes a stable hypoxic environment ideal for a wide spectrum of research fields, such as tumor research, neurology, stem cell investigations, and cardiovascular studies. The DY-XL workstation is an elevated version of the standard DY-L workstation, allowing you to accommodate larger equipment for more versatile research endeavors.
The DY-XL workstation allows you to precisely adjust oxygen levels from 0.1% to 23% and carbon dioxide levels from 0.1% to 20%, both adjustable in 0.1% increments. It also regulates humidity and temperature carefully while providing real-time pressure monitoring.
The Maworde Hypoxic Workstation offers various sizes and options, including Wireless Control and Cable Port. We are committed to customizing workstations to amplify research flexibility, tailored to your unique needs. Designed to meet the most stringent demands of cell culture research, our workstation guarantees precise control over environmental variables, ensuring consistently reliable results.
Features
- O2 Control: 0.1% – 23.0%, in 0.1% increments
- CO2 Control: 0.1% – 20.0%, in 0.1% increments
- One-touch calibration for O2 and CO2 sensor
- Temperature Control: 3°C above ambient up to 45°C, in 0.1°C increments
- Humidity Control: Room humidity to 85%
- Advanced Gas Circulation Design:
√ Ensures an exceptional level of homogeneity in gas distribution throughout the workstation
√ Consistent airflow contributes to accurate and reliable experimental outcomes
√ HEPA 14 filter available for superior particle removal and a pristine environment - Seamless Entry System (SES):
√ An efficient vacuum pump grants direct workstation access in 10-12 seconds
√ Operable with lab gloves, ensuring seamless and convenient handling
√ Glove port caps easily “park” in special holders, optimizing workspace utilization - Innovative Acrylic Construction:
√ Panels molded from a single piece of acrylic to reduce condensation and microbial growth
√ Improved acrylic Integrity with Annealing Process for enhanced durability - Dual Pressure Relief System:
Equipped with a classic pressure relief valve and a special pressure relief tank for enhanced safety and precise pressure regulation
Optional Features
- Programmable Hypoxic Cycle: Automated adjustments of O2 and CO2 concentrations for efficient sample stimulation
- O2 Meter with Sensor: Continuously monitors internal O2 concentration
- Cable Port: Facilitates equipment integration within the workstation
- Remote Control with Alarm: Remote control and alarms for O2, CO2, temperature, humidity, gas cylinder pressure, and gas leaks
- Single Plate Entry System: Simplifies sample transfer
- Sidewall Pipette Holder: Convenient pipette holder for easy access
- Vac Line Connection Port: Simplifies waste disposal and cleaning processes
- Gas Sample Port: Convenient solution for gas extraction or detection
- High Temperature Chamber: Provides controlled high-temperature environments (up to 55°C) for experiments
- Micro-Pressure Chamber: Offers precise regulation of static pressure ranging from 0 to 35 KPa (0 to 5 PSI), with an adjustment accuracy of 0.1 KPa
- Anaerobic System: Combines hypoxia and anaerobic conditions in a single workstation
Specifications
| Internal Dimension (W/D/H mm) | 760 / 570 / 550 |
| External Dimension (W/D/H mm) | 1120 / 660 / 770 |
| Capacity (petri dishes) | 720 / 580 |
| Interlock Capacity | 44 × 90 mm Petri dishes |
| Gas Supplies | N₂ / CO₂ / Air; N₂ / CO₂ |
| Real-Time Gas Control | Available |
| Temp & Humidity Control | Available |
| Real-Time Pressure Detection | Available |
| Quick Sensor Calibration | Available |
| HEPA Filtration System | Available |
| Seamless Entry System (SES) | Available |
| Detachable Front Panel | Available |
| Real-Time Data Graphing | Available |
| Unique Interlock Purge | Available |
| Three-Tiered User Password | Available |
| Dual Pressure Relief System | Available |
| Data Logging System | Available |
| Cylinder Low Pressure Alarm | Available |
| Internal Socket & Light | Available |
| Activated Carbon Sachet | Available |
