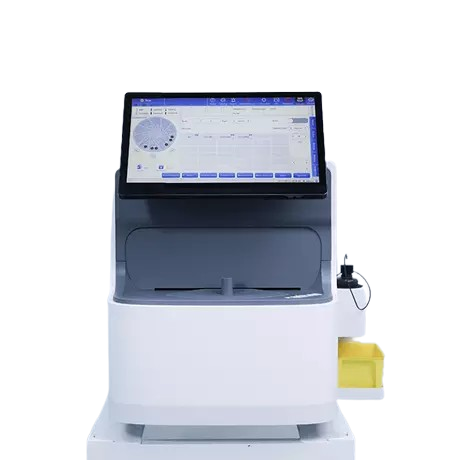

CLIA Immunoassay Analyzer Product Advantage
Excellent instrument performance
● Conveying speed: 120T/h
● Fast: results are available in 15 minutes
● Good repeatability: CV≤3%
● Flexible functions: supports BATCH, RANDOM, STAT mode
● Easy to operate: all consumables can be downloaded online
Effective system design
● Small size: 0.3m3, size – 43*68*64cm (including touch screen)
● Multi-function: Integration of incubation, cleaning, and detection
● Integration: The touch screen is integrated with the host, providing a good human-computer interaction experience
● Intelligent: fully automatic intelligent control technology, low machine failure rate
Advanced detection principles
● Patented magnetic microbead manufacturing technology, 20 years of R&D experience.
●Innovative FITC connection technology: complete reaction,no non-specific adsorption, more accurate test results.
●Innovative APLS luminescent substrate: high detection sensitivity, high analysis speed.
EFFICIENT INTEGRATED SAMPLE/REAGENT AREA
●Sample area: ①Up to 30 sample positions, support continuous loading;
②Support original tube on board.automatic dilution function;
●Reagent area: ①10 reagent positions on board, can be loaded or replaced at any time.
②Prevented from evaporation while on board, automatically sealed;
③Reagent balance and expiration reminder;
④24 hours refrigerated, storage temperature 2-8℃
●Barcode reader recognition or locate sample/reagent
SIMPLY CONSUMABLES MANAGEMENT MODULE
●Reaction cup loading: inverted cups, up to 200 pcs, recyclable loading;
●Substrate loading bottles can be loaded with a backup loading function ;
●Departure time: 3 hours
HIGH SENSITIVITY SAMPLE ADDITION MODULE
●Sample addition with needles, saving consumables
●Accurate sample dosing:10-150μL
●Anti-collision, liquid level detection for reagent, clot detection, bubble detection, needle plugging detection, etc.
●Vacuum power cleaning mode, washing needle from inside to outside walls
STABLE REACTION AND CLEANING MODULE
●Reaction position: 52
●External mixing to enhance the combined effect of reactants
●Incubation station: Constant37±0.1℃ incubation to ensure the best state of combined reaction
●Washing station: Effectively separate the liquid in the reaction cup, maximize the removal of non-reactive substances
INTELLIGENT SOFTWARE ANALYSIS SYSTEM
●Touch screen, English operation interface
●Touch screen integrated with the main machine, convenient operation
●Automatic information entry, LIS connection
CLIA Immunoassay Analyzer Product Uses
- Outpatient emergency inspection
- Laboratory/Clinical Key Items Inspection
- Primary hospital laboratory
