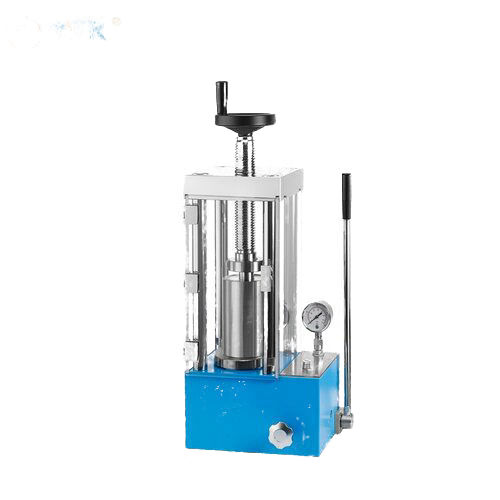

Isostatic Tablet Press is mainly used for pressing sample tablets within a diameter of 3mm-150mm. The tablet press is equipped with molds of various sizes based on the mechanical lever principle. It is both practical and convenient. The main machine is made of 304 stainless steel and the shell is made of environmentally friendly spray-coated. The pressure display can be directly displayed. It is one of the essential equipment for laboratory research and development and production enterprises to handle powder.
Technical Specification of Isostatic Tablet Press
| Model | PC-12J | PC-20J | PC-40J | PC-60J |
| Pressure range | 0-12T（0-17MPa） | 0-20T (0-21MPa) | 0-40（0-30MPa） | 0-60T (0-34MPa) |
| Piston diameter | Chrome plated oil cylinder
Φ95mm（d） |
Chrome plated oil cylinder
Φ110mm(d) |
Chrome plated oil cylinder
Φ130mm（d） |
Chrome plated oil cylinder
Φ150mm(d) |
| Pressure gauge | Dual scale display of pressure and pressure | |||
| Maximum piston distance | 40mm（T） | 40mm（T） | 50mm（T） | 50mm（T） |
| Protective cover | Organic glass | |||
| Ambient temperature | 10℃-40℃ | |||
| Isostatic pressure | 0-300MPa | |||
| Isostatic pressure chamber | Φ22*70mm | Φ30*120mm | Φ40*150mm | Φ50*150mm |
| Dimensions | 305*195*530mm | 305*195*600mm | 245*175*390mm | 405*240*720mm |
| Weight | 90kg | 100kg | 130kg | 180kg |
