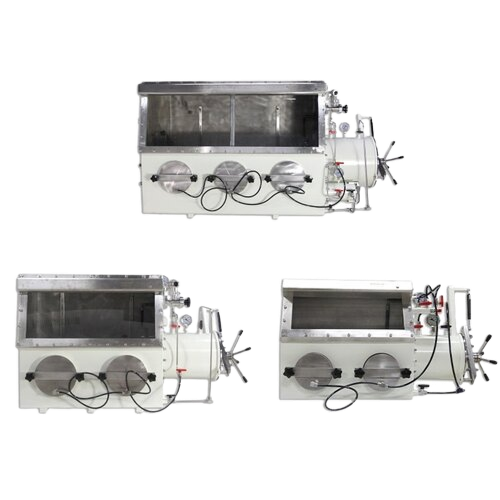

Lab Stainless Steel Glove Box, In a scientific experiment, some substances easily oxidized and deliquescence at atmospheric conditions, which makes the chemical reaction of the test substance and pre-processing of the sample is very difficult, affecting the test procedures and test results. A vacuum glove box (also known as vacuum inert gas operation box) solve these problems effectively. The equipment allows the test samples to be able to into and removed securely, and can operate, react and test freely in the state of anaerobic anhydrous. It ensures the normal operation of scientific experiments.
Technical Specification of Lab Stainless Steel Glove Box
| Model | Dimensions
(LxWxH)mm |
Transition Chamber
Size (mm) |
Small Transition Chamber
Size (mm) |
Shelves | Glove ports diameter | Weight
(kg) |
Thickness
(mm) |
Drawer | Operating Room
Vacuum Degree |
Transition Chamber
Vacuum Degree |
Voltage | Lighting | Valve
Configuration |
Observation Window Size
(mm) |
Weight
(kg) |
Use Gas |
| MT-STX1 | 600*450*500 | Ф200*270 | / | / | Ф145mm | 89kg | 6mm | / | -0.1 Mpa | -0.1 Mpa | 10A
220V
|
1 | 2 inlet valves
2 outlet valves
|
60*30 | 130kg | Argon, helium, nitrogen
(purity 99.99% above)
|
| MT-STX2 | 800*600*700 | Ф280*350 | / | 1 layer | Ф200mm | 146kg | 6mm | / | 75*40 | 230kg | ||||||
| MT-STX3 | 1200*700*900 | Ф340*400 | Ф120*160 | 1 layer | Ф200mm | 312kg | 6mm | With drawer | 120*50 | 350kg |
