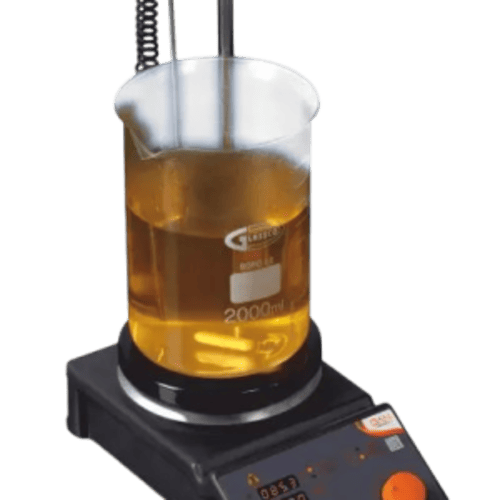

The Laboratory Magnetic Stirrer with Digital Hotplate is a versatile and high-performance instrument engineered for precise heating and stirring of solutions in scientific and industrial laboratories. Designed for reproducibility, safety, and control, this model is ideal for applications that demand accurate temperature regulation and consistent mixing over extended periods. Equipped with a high-resolution digital display, the stirrer allows real-time monitoring of temperature and stirring speed. The microprocessor-controlled system ensures uniform heat distribution and maintains the set values with minimal fluctuations. The hotplate surface—typically made from ceramic-coated aluminum or stainless steel—provides excellent thermal conductivity and chemical resistance, while the powerful magnetic motor delivers reliable stirring even at high viscosities or large volumes. Additional features such as temperature sensors (external probes), timing functions, over-temperature protection, and anti-slip feet make this stirrer a smart solution for labs that require repeatable, programmable results and enhanced safety.
Features of Laboratory Magnetic Stirrer with Digital Hotplate
- Aluminium Moulded Construction
- Ceramic coated plate alloy, chemically resistant
- Chemically resistant keypad
- Even heat distribution at faster rate.
- Thermal insulation for cool body operation.
- Digital set up temperature controller with independent LED display.
- Set safety cut-off for maximum temperature limit for top plate or probe.
- Installed with double PT sensors for fail safe operating mechanism.
- Hot top indicator for temperature above 50°C even when switched off.
- Inclusive PT 100 temperature sensors probe.
- Audible alarm at time cycle end for safety and ease of unsupervised operation.
- Top plate Ø 145 mm to assist beaker upto 2000 ml & Adapter.
- Compatible for use with all major brands top assemblies 1 Cavity, 3 Cavities or Multiple Cavities.
- Digital setup of time with independent LED display.
- Selection of plate and probe temperature.
- Error code display at failures
- Digital setup of RPM with independent LED diplay.
- Count-up indication of minutes and hours.
- Single multi-turn intelligent knob Operation.
- Selection of Celsius and Fahrenheit.
- High magnetic strength.
Technical Specification
| Heang Mantle Material | : Alluminium Alloy with ceramic coating |
| Dimension of heating plate | : Ø145mm |
| Three display windows for | : Temperature, RPM and time |
| Speed range | : 50-1500 RPM |
| Maximum srring bar Length | : Can use upto 80 mm bar (at lower speed) |
| Temperature Range | : Ambient to 350°C approx |
| Adjustable safety cut off | : 50-400°C |
| Control accuracy of PT100 | : ± 1K |
| Dimensions of hot plate body | : 273x160x102mm |
| Weight of body | : 3.3 kgs |
| Permissible ambient Temperature | : 5- 40 °C |
| Permissible relave moisture | : 80% |
| RS 232 interface | : Yes (for programming) |
| IP Class | : 32 |
| Also Known as | : 610.DG.01, 610.DG.02 |
Included Accessories:
| Cat. No. | Accessories |
|---|---|
| 850.800.01 | Rod Stainless Steel length 400 mm, Ø 12 mm |
| 850.800.02 | Magnetic Stirring bar 35 mm x 9 mm |
| 850.800.03 | Moulded PT 100 sensor probe |
| 850.800.04 | Boss Head |
Option Accessories:
| Cat. No. | Accessories (Aluminum Adapter for Round Bot tom Flasks) Flask Capacity (ml) |
Places |
|---|---|---|
| 610.ADP.00 | 10ml | 8 |
| 610.ADP.01 | 25ml | 7 |
| 610.ADP.02 | 50ml | 4 |
| 610.ADP.03 | 100ml | 1 |
| Temp | RPM | Plate Size | Vessel Capacity | Plate Material |
|---|---|---|---|---|
| 350° C | 50-1500 RPM | 145mmØ | upto 2L Beakers | Aluminium Alloy Ceramic Coated |
