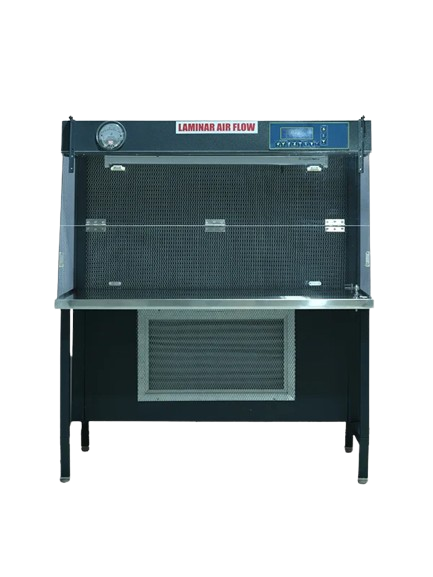

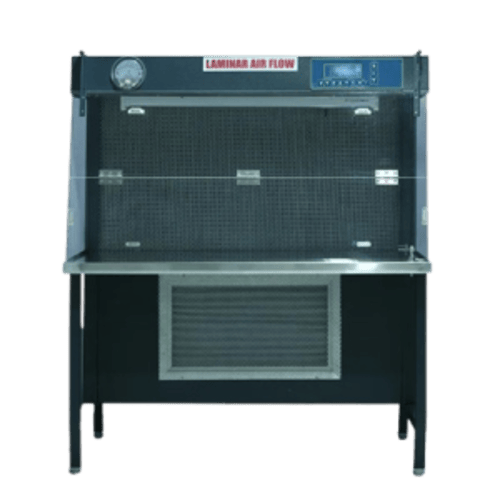

The Horizontal Laminar Air Flow Cabinet is a contamination-free working environment designed for applications requiring a highly sterile and particle-free air workspace. It provides ISO Class 5 clean air through HEPA filtration, ensuring a unidirectional, horizontal flow of filtered air across the workspace to protect samples from airborne contaminants. Constructed from durable, corrosion-resistant materials like powder-coated steel or stainless steel, this cabinet is ideal for use in microbiology, electronics, pharmaceuticals, plant tissue culture, IVF labs, and other sensitive applications where sample integrity is critical.

Safety Features of Laminar Air Flow (Horizontal)

  • Microprocessor LCD Controller
  • Digital display for air flow rate
  • Transparent Front Door
  • Gauges Pressure (Statics Pressure Mano-Mater)
  • Magnahelic Gauge (for filter pressure)
  • U. V. Germicidal Tube in work area
  • Electronic Filter choke alarm
  • Spare HEPA Filters
  • Auto switch on/off for U.V. Germicidal tube & fluorescent light
  • Hour Meter for UV light with Test Certificate



Technical Specification :

Size : 4’x2’x2ʼ
Size of Hepa : 4’x2’x6:-ʼ
No. of Hepa : 1 Nos
Cleaness : Class 100
Velocity : 90 FPM +/-20
Hepa Filter : 99.99% For particles >0.3 μm
PrefIlter : 85 %efficiency for particles >0.5 μm (Washable)
Particle Count : Better than US Fed Std 209B Class10 and VDI 2083 Class 3
Cabinet : Laminated High Quality Wooden Board /PCRC Sheet Powder Coated/Stainless Steel SS 304(optional 316 grade)
Work Table : 304 Stainless Steel (optional 316 grade
Airflow Speed : Control Speed Controller (Three Step Speed Controller)
Blower : High efficient centrifugal type with lifetime light
Light : High intensity, low wattage >800 luxlubricated bearings
Noise Level : 55 dBA
Standard Accessories : Air/gas cock and mains power socket (16A)
Power Supply : 220-230 V, 50 Hz.
