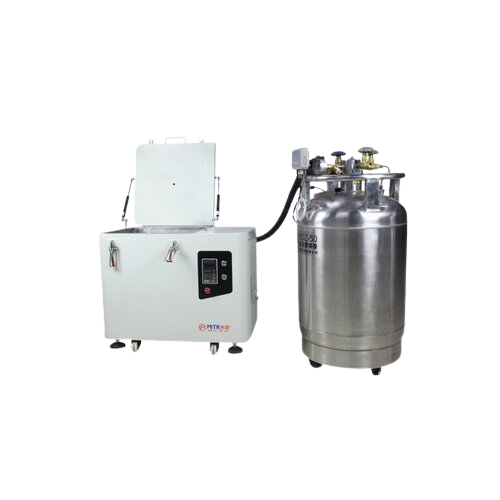

Liquid Nitrogen Planetary Ball Mill is a laboratory equipment for fine grinding of materials in ultra-low temperature environment. It is a liquid nitrogen refrigeration method developed to maintain the ultra-low temperature state of sample materials for material properties and experimental temperature requirements, to prevent the material temperature from being too high and affecting the original properties of the material. The temperature setting is -60~-1℃.
Feature of Liquid Nitrogen Planetary Ball Mill
- It is used the liquid level temperature controller on the liquid nitrogen tank
- Temperature is controlled automatic and save liquid nitrogen consumption
- Temperature range in the machine is-60°C to-1°C. Ultra-fine grinding in ultra-low temperature environment.
- 2.0 sheet metal shell spraying environmental protection process. Use insulation material inside to ensure the continuous low temperature environment.
- Oil seal silent invention patent, 50% lower noise than the other planet ball mill in the market, Extend the service life by more than 2 times.
- The machine can be moved by wheels, light handling, fast and save
- Safety door. The power is cut off when the lid is opened to avoid the jar out of the machine.
Technical Specification of Liquid Nitrogen Planetary Ball Mill
| Model | YD-XQM2L | YD-XQM4L | YD-XQM8L | YD-XQM12L | YD-XQM20L |
| Grinding jar capacity | 50-500(ml) | 50-1000(ml) | 500-2000(ml) | 1000-3000(ml) | 1000-5000(ml) |
| Vacuum jar capacity | 50-250(ml) | 50-500(ml) | 500-2000(ml) | 1000-3000(ml) | 1000-5000(ml) |
| Revolution speed | 5-400(r/min) | 5-400(r/min) | 5-320(r/min) | 5-320(r/min) | 5-230(r/min) |
| Rotation speed | 10-800(r/min) | 10-800(r/min) | 10-640(r/min) | 10-640(r/min) | 10-460(r/min) |
| Power | 0.75(kw) | 0.75(kw) | 1.5(kw) | 1.5(kw) | 3(kw) |
| Voltage | 220/50(v/hz) | 220/50(v/hz) | 220/380/50(v/hz) | 380/50(v/hz) | 380/50(v/hz) |
| control temperature | -60℃ to -1℃ | ||||
| Nitrogen container | Automatic pressurization 30L
|
Automatic pressurization 50L | |||
