Key Features
-
High Throughput: Processes up to 60 tests per hour, ensuring efficient sample analysis.
-
Comprehensive Test Menu: Includes assays for thyroid function, fertility, glycometabolism, bone metabolism, tumor markers, hepatic fibrosis, prenatal screening, cardiac markers, and more.
-
Advanced Reagent System: Employs micro superparamagnetic beads and a new APLS substrate, achieving rapid reaction times with a platform stage time of less than 20 seconds.
-
Automatic Calibration: Supports both two-point and six-point calibration for precise measurements.
-
Continuous Reagent Loading: Allows for the simultaneous loading of 10 reagents, with continuous loading capabilities without interrupting testing.
-
Sample Capacity: Accommodates up to 75 samples, with continuous loading without halting the testing process.
-
Barcode and RFID Scanning: Facilitates accurate reagent and sample identification.
-
LIS Connectivity: Ensures seamless data exchange for efficient laboratory management.
-
User-Friendly Interface: Features a touchscreen interface for easy operation and monitoring.
-
24/7 Standby Mode: Enables testing at any time, enhancing workflow flexibility.
Product characteristics
- Magnetic motor lock
- Automatic Static cooling
- Beep sound for centrifuge completion
- Temperature setting range -20°C to 40°C.
- Only 7 minutes from room temperature to 4°C.
- 9 customized programs in memory
- Biosafety – Three layers of sealed rotor
- High-strength aluminum alloy rotor. Suitable for 121°C disinfection.
- Dynamic balance detection
- 9-speed lifting acceleration, slow braking for better results
- 5 rotor selections, adapters for 0.2 mL, 0.5 mL, 1.5 mL, 2 mL and 5 mL centrifuge tubes, and PCR strips of 8 tubes.
- External condensate tank.

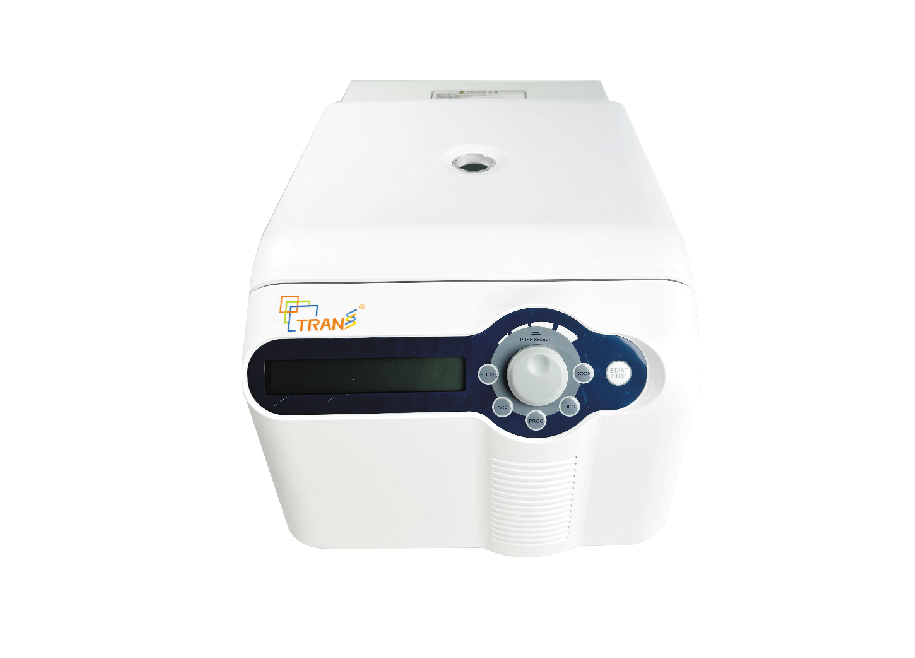

Specifications of Low-Temp High Speed Microcentrifuge (TSC-24L)
| Category | Specification |
|---|---|
| Model | TSC-24L |
| Maximum Speed | 15,000 × g (200–15,000 rpm), step size: 100 rpm |
| Maximum RCF (Centrifugal Force) | 21,380 × g, step length: 10 × g |
| Capacity | – 1.5/2 mL × 24 (standard) – 0.2/0.5 mL × 36 – PCR-8 strips × 4 – 5 mL × 12 – 5 mL × 18 |
| Temperature Range | -20°C- 40°C |
| Timer | 30 sec – 99 min, HOLD (continuous operation) |
| Lid Opening/Closing Time | 25 seconds ↑ / 25 seconds ↓ |
| Motor Type | DC brushless motor |
| Safety Features | Double door lock, overspeed & overtemperature detection |
| Power Supply | Single-phase, 100-120 V/200-240 V, 50/60 HZ,500 W |
| Dimensions (L × W × H) | 332 X 553 X 283 mm |
| Weight | -30 kg |
| Additional Functions | – Speed/acceleration conversion – Instantaneous operation – Process display – Sound prompt |
