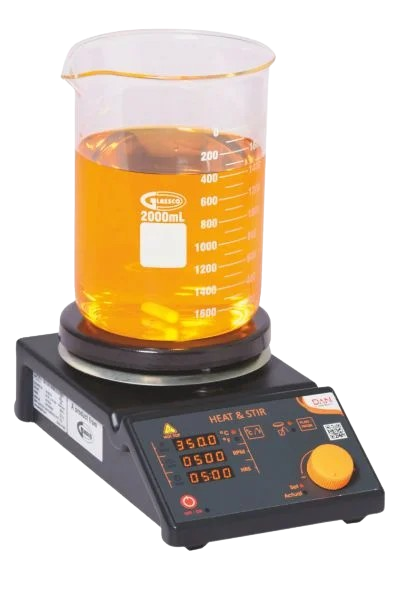

Magnetic Stirrer with Analog Hotplate


Enhance your lab experience with this premium Magnetic Stirrer with Analog Hotplate. Designed for precision, it offers adjustable stirring speeds (50-1700 RPM) and a temperature range of up to 350°C. Its durable steel/ceramic-coated heating plate ensures consistent heating, while the built-in safety features, including a hot top indicator and PT sensor, guarantee safe operation. Perfect for stirring and heating large volumes, this versatile device is ideal for scientific and laboratory applications.

Compare

The Magnetic Stirrer with Analog Hotplate is a robust and economical laboratory device designed for simultaneous heating and stirring of liquid samples. Known for its simplicity and reliability, this analog model is ideal for everyday mixing and heating tasks in educational, industrial, chemical, and biological labs. It features dual rotary knobs for manual control of temperature and stirring speed, offering tactile feedback and ease of adjustment. The hotplate surface, typically made from ceramic-coated aluminum or stainless steel, provides excellent thermal conductivity and corrosion resistance. The magnetic stirring mechanism ensures uniform mixing, even at varying viscosities, making it suitable for low to medium-viscosity liquids. This stirrer is often preferred in environments where digital precision is not necessary and a cost-effective, low-maintenance solution is desired.

Features of Magnetic Stirrer with Analog Hotplate

  • Aluminium Moulded Construction

    • Durable and lightweight design for efficient performance.

  • Easy Temperature & Stir Controls

    • Simple controls for precise adjustments of temperature and stirring speed.

  • Safety PT Sensor for Fail-Safe Operation

    • Ensures reliable operation with built-in safety features.

  • Hot Top Indicator

    • Alerts when temperatures exceed 50°C for safety.

  • Large Top Plate

    • Accommodates beakers up to 2000 ml, providing versatile usage.

  • High Magnetic Strength

    • Strong magnetic field for effective stirring.

  • Electronic Variable Speed Control

    • Adjustable speed control with knob display for easy monitoring.

  • Knob for Regulating Variable Temperature

    • Precise temperature control with an intuitive knob adjustment.

  • Heat Reach Indicator

    • Displays the current temperature of the plate surface for accurate usage.

  • Stirring & Temperature Indicator

    • Visual indicators to show real-time stirring and temperature status.

  • Error Indicators for Heat & Stir Functions

    • Built-in troubleshooting indicators for heat and stir malfunctions.

  • Hot Top Warning Indicator

    • Signals when the temperature exceeds 50°C, ensuring user safety.

Technical Specifications

  • Heating Mantle Material

    • Steel/Ceramic Coated for durability and efficient heat distribution.

  • Dimension of Heating Plate

    • 150 Ø (Diameter) for ample heating surface.

  • Speed Range

    • 50-1700 RPM for versatile stirring speed control.

  • Maximum Stirring Bar Length

    • Can use up to an 80mm bar (at lower speeds).

  • Temperature Range

    • Ambient to 350°C approx, suitable for a wide range of applications.

  • Dimensions of Hot Plate Body

    • 273 x 160 x 102 mm for compact and efficient design.

  • Weight of Body

    • 2.8 kgs for a stable, easy-to-handle unit.

  • Permissible Ambient Temperature

    • 5-40°C for safe and reliable operation in various environments.

  • Permissible Relative Moisture

    • 80% for consistent performance in diverse conditions.

  • IP Class

    • IP 22 for protection against solid objects larger than 12mm and dripping water.
