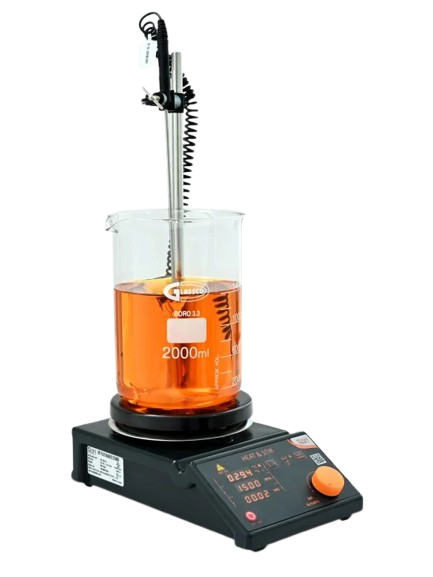

The Magnetic Stirrer with Digital Hotplate is a high-performance laboratory device engineered for precise and efficient simultaneous stirring and heating of liquids. Featuring a digital control interface, it provides accurate temperature and stirring speed settings, ideal for scientific research, pharmaceutical applications, chemical synthesis, and quality control laboratories. Equipped with a ceramic-coated or stainless-steel heating plate, this stirrer ensures rapid heat distribution and superior chemical resistance. The digital display (typically LCD or LED) offers real-time monitoring of temperature and stirring speed, enhancing control and repeatability in complex experiments. Designed with built-in safety systems, including overheating protection, PID temperature control, and closed-loop stirring regulation, it ensures safe and reliable operation during prolonged laboratory use. Some models may include external temperature probes (PT1000 or K-type thermocouples) for direct liquid temperature feedback.
Features of Magnetic Stirrer with Digital Hotplate
- Aluminium Moulded Construction
- Easy temperature & Stir controls
- Installed with Safety PT sensor for fail safe operation.
- Hot top indicator for temperatures above 50°C.
- Large top plate to assist beakers upto 2000 ml.
- High magnetic strength.
- Electronic variable speed control with Knob for display.
- Knob for regulating variable temperature.
- Heat reach Indicator, To ensure you correct temperature of plate surface.
- Stirring & temperature indicator
- Error indicators for heat & Stir function inbuilt trouble shoot
- Hot top warning indicator for temperature >50°C
Technical Specification:
Heang Mantle Material | : Stainless Steel 304 Grade/ Ceramic Coated |
Dimension of heang plate | : 150 Ø |
Speed range | : 50-1600 RPM |
Maximum srring bar Length | : Can use upto 80 mm bar (at lower speed) |
Temperature Range | : Ambient to 350°C approx |
Dimensions of hot plate body | : 273x160x102mm |
Weight of body | : 2.8 kgs |
Permissible ambient Temperature | : 5- 40 °C |
Permissible relave moisture | : 80% |
IP Class | : 22 |
Included Accessories:
Cat. No. | Accessories |
---|---|
850.800.02 | Magnetic Stirring bar 35 mm x 9 mm |
