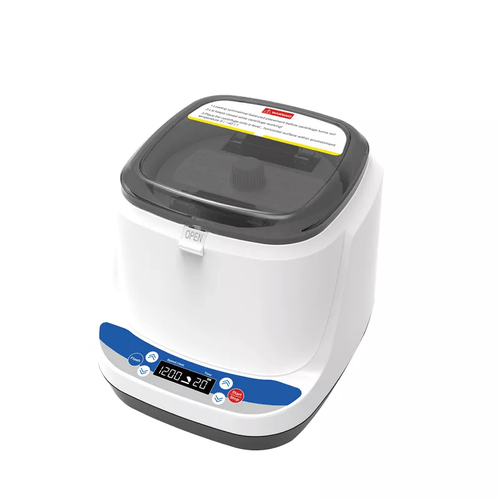

MINI-3 Microplate Centrifuge


The micro porous plate centrifuge adopts international advanced design concepts and manufacturing technology, with a smooth and beautiful appearance, compact and stable structure, adhering to the advantages of high universality and easy operation. It also has the functional characteristics of “smooth start” and “smooth braking”; This micro porous plate centrifuge is very suitable for 96 or 384 well and small capacity micro porous plates, as well as various standard PCR micro porous plates with or without skirts .

Compare

Product advantages

1. The instantaneous centrifugal function rises to the maximum speed for about 6 seconds, allowing for rapid detachment of hanging droplets from the wall;

2. Faster acceleration and deceleration rate, required to complete the experiment in a shorter time;

3. Door cover protection, overspeed and imbalance detection system, capable of real-time monitoring of  the centrifugal process, ensuring the safe operation    of the  instrument; When the operation ends, an error occurs, or an imbalance occurs, the sound signal prompts, and the operation stops at the same time. The LCD displays the result code

Host Parameters



Product model



Mini-3
Input power supply DC24V/2.75A
Input power 55W
Motor/Drive Method DC24V brushless DC variable frequency motor
Display method High brightness LCD screen
Effective centrifugal time 1-99min.1-59sec
speed 300~3000±15rpm
Speed step increase 10rpm
Maximum capacity 2 *96 well PCR plates/ELISA plates
MAX. RCF 608 xg
Misoperation/alarm failure Sound prompt+display code
weight 3.9Kg
Noise 60dB (A)
Fastest acceleration time <6s
Fastest deceleration time <5s
Permissible ambient temperature/relative temperature



+5-40°C/80%
