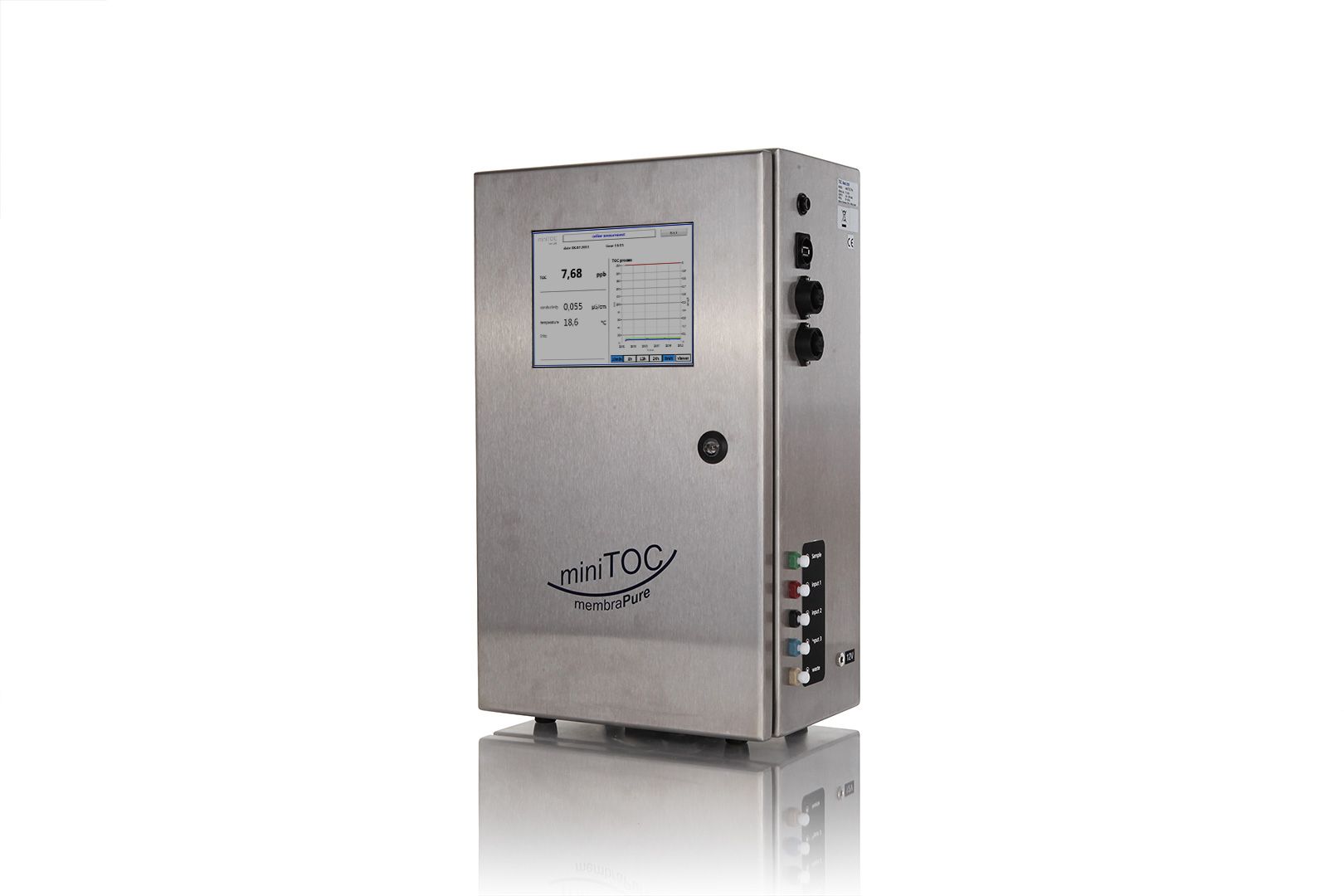

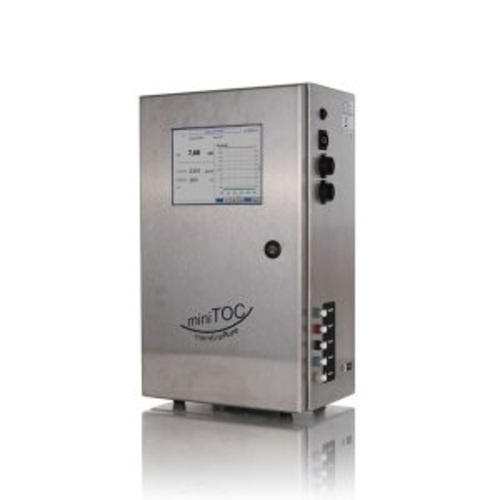

miniTOC Analyzer

The miniTOC Analyzer is a compact, high-precision Total Organic Carbon (TOC) analyzer designed by membraPure GmbH for continuous or offline monitoring of TOC levels in ultrapure and pharmaceutical-grade water systems. Compliant with pharmacopoeia standards (USP <643>, EP 2.2.44), the miniTOC is optimized for online measurement, ensuring consistent water quality for critical laboratory and industrial applications. Built on the UV-persulfate oxidation method with conductivity detection, the miniTOC is capable of detecting low ppb-level TOC concentrations, making it ideal for cleanrooms, pharmaceutical manufacturing, and semiconductor water systems. It features a low-maintenance design, automatic calibration, and 21 CFR Part 11–ready software, making it compliant and user-friendly.

Technical Specifications of miniTOC Analyzer

Method & Detection

• UV oxidation & conductivity

Sample Volume Flow

• approx.14 mL/min

Period of Measurement

• 2 sec (online mode) | 1 min + 5 min purging (offline mode)

Measurement Range

• 0.5 to 1000 ppb

Detection Accuracy

• < 50 ppb ± 0.5 ppb, > 50 ppb ± 1 %

Ports

• 1 for sample, 1 for SST (basic) | 1 for sample, 3 for SST (pro)

Related Norms

• USP <643>, EP 2.2.44, DIN EN 1484

Ambient Parameters

• relative humidity: 10 to 95 %, temperature: 10 to 45 °C

Interface Ports

• analog (0 – 20 mA), according to Namur NE43

Power

• 110 – 230 V, 50 Hz, 60 Watt

Dimensions

• 300 mm x 200 mm x 500 mm

Weight

• 14 kg

Sample Requirements of miniTOC Analyzer

Type of Sample

• pure to ultra pure water

Sample Input Conductivity

• < 2 µS/cm (upgradable to < 10 µS/cm)

Inlet Pressure

• < 1 bar

Sample Temperature

• < 50 °C
