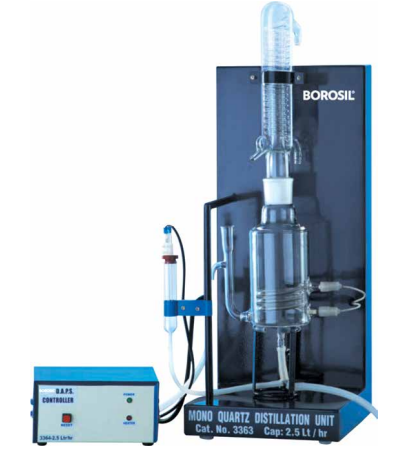

Mono Quartz Distillation Units

Mono Quartz Distillation Units are designed for producing pyrogen-free distilled water using high-grade quartz condensers and boilers. With excellent thermal resistance, they ensure consistent purity and are well-suited for research labs, pharmaceutical, and chemical analysis environments requiring ultrapure water.

Compare

Ask for Price

Main Features

Made from high purity quartz
Compact design
Instant and easy to operate
Pyrogen free water
Efficient energy design for boiler
Safety cut off – accessory

Specification	3363042	3363033	3363038	3364042	3364033
Condenser Type	Boro 3.3	Boro 3.3	Boro 3.3	Quartz	Quartz
Distilled Water Output	2.5 LPH	5 LPH	10 LPH	2.5 LPH	5 LPH
Cooling Water Requirement	1 L/min	2 L/min	2.5 L/min	1 L/min	2 L/min
Heater	Quartz	Quartz	Quartz	Quartz	Quartz
Boiler	Quartz	Quartz	Quartz	Quartz	Quartz
Biological Activity	Pyrogen Free	Pyrogen Free	Pyrogen Free	Pyrogen Free	Pyrogen Free
Conductivity (S/cm)	<3 × 10⁻⁶	<3 × 10⁻⁶	<3 × 10⁻⁶	<3 × 10⁻⁶	<3 × 10⁻⁶
Power Consumption	2.2 kW	4.4 kW	8.8 kW	2.2 kW	4.4 kW
Voltage	230 V	230 V	440 V (3 Phase)	230 V	230 V
Accessory – DAPS Code	3366342	3366333	3366338	3366442	3366433
