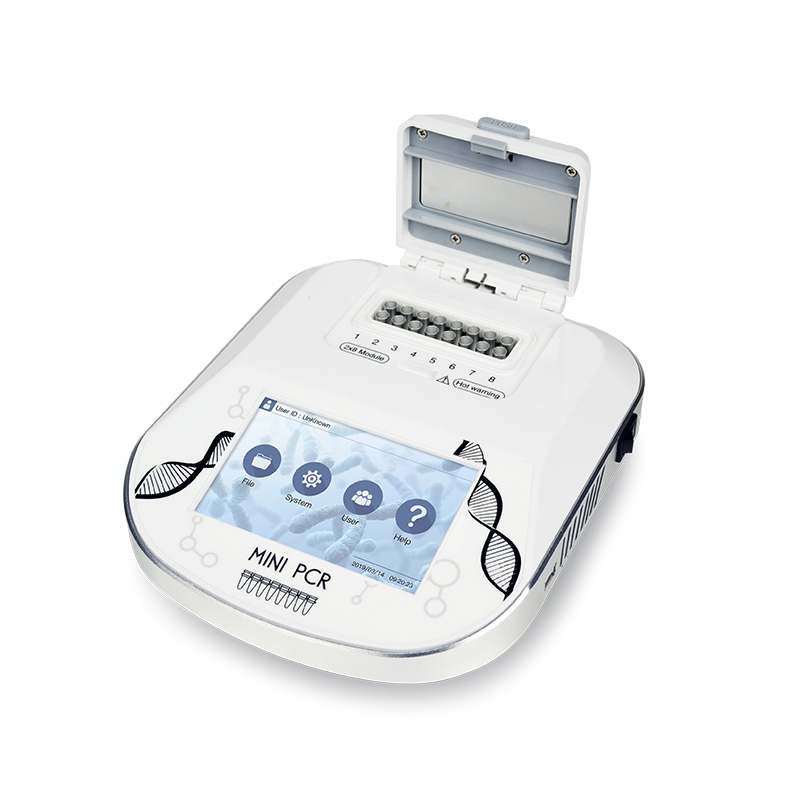

MP-16 Mini Thermal Cycler

The Mini Thermal Cycler is a compact, ultra-light, and ultra-thin gene amplification instrument designed for portability and efficiency. Ideal for molecular biology, forensic analysis, disease research, and more. Its mini size allows for easy transport, including use in vehicles, making it a versatile solution for on-the-go PCR applications.

Compare

Ask for Price

Features Of MP-16 Mini Thermal Cycler

Compact & Lightweight Design: Ultra-light and ultra-thin with a modern, user-friendly interface for simple and convenient operation.
Versatile Temperature Control: Switchable hot lid with selectable test tube temperature control mode and module temperature control mode to accommodate different experimental needs.
Portable & Car-Compatible: Designed for mobility, the MP-16 Mini PCR can be used in vehicles for field applications.
Easy Software Updates: Supports quick upgrades via USB flash drive, ensuring convenient instrument software updates.

SKU: MLB-00112 Category: Scientific Laboratory Tags: Compact PCR System, Laboratory PCR Equipment, Mini Thermal Cycler, Mobile PCR Device, PCR Machine Brand: MUILAB

Feature	MP-32+	MP-16
Model	MP-32+	MP-16
Single step time range	1-59m59s (0 is forever)	1-59m59s (0 is forever)
Temp. range	4-99.9°C	4-99.9°C
Sample capacity	32×0.2ml	16×0.2ml
Max. heating rate	6°C/s	5°C/s
Max. cooling rate	5°C/s	4°C/s
Temp. uniformity	±0.25°C	±0.25°C
Temp. accuracy	±0.20°C	±0.20°C
Temp. display resolution	0.1°C	0.1°C
Temp. control method	Block/Tube	Block/Tube
Gradient temp. uniformity	±0.3°C	/
Gradient temp. accuracy	±0.3°C	/
Gradient temp. range	30-99.9°C	/
Gradient temp. difference range	0.1-30°C	/
Hot cover temp. range	30-110°C¹	30-110°C
Max. steps of the program	30	30
Program max. cycle number	99	99
Time increment/decrement	-599-+599s	-599-+599s
Temp. increase/decrease	-9.9-+9.9°C	-9.9-+9.9°C
Program pause function	Yes	Yes
16°C Insulation	Forever	Forever
LCD	5 inch, 800×480 Pixel	5 inch, 800×480 Pixel
Program storage quantity	>100	>100
Communication Interface	USB 2.0	USB 2.0
Input power	24V, 8A	12V 9.99A
Dimensions	W.200xD.230xH.85mm	W.200xD.230xH.85mm
Net weight	3.2kgs	3.2kg
