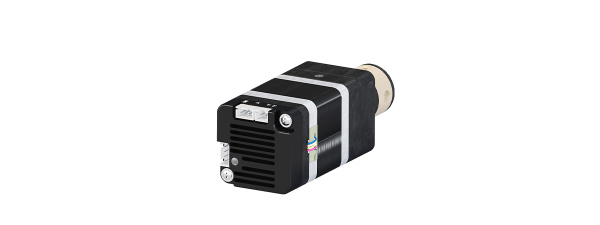

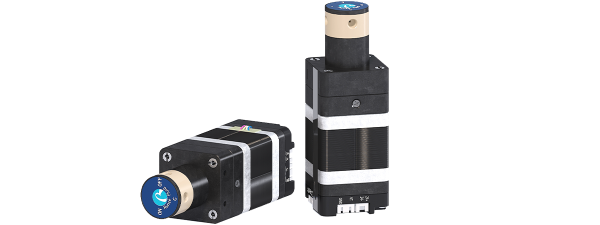

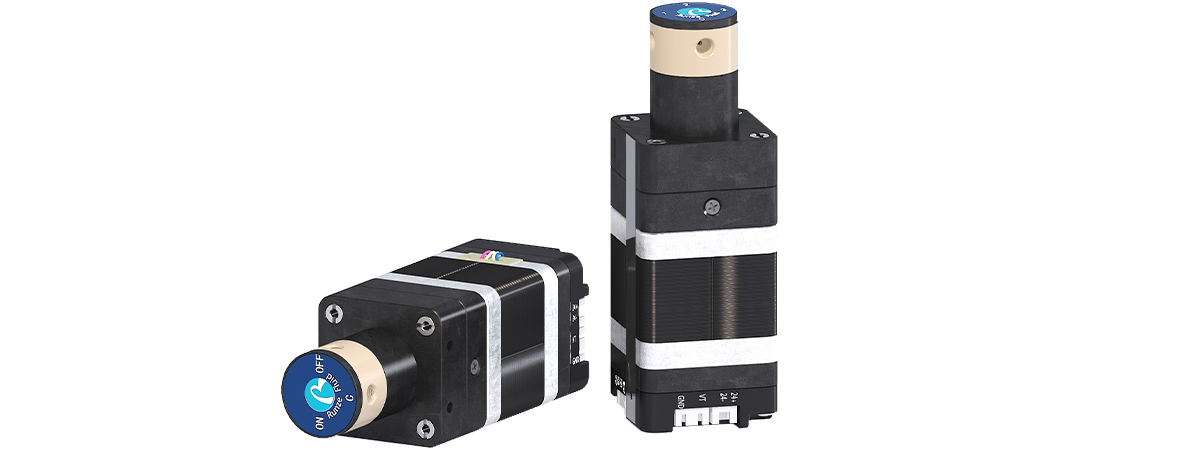

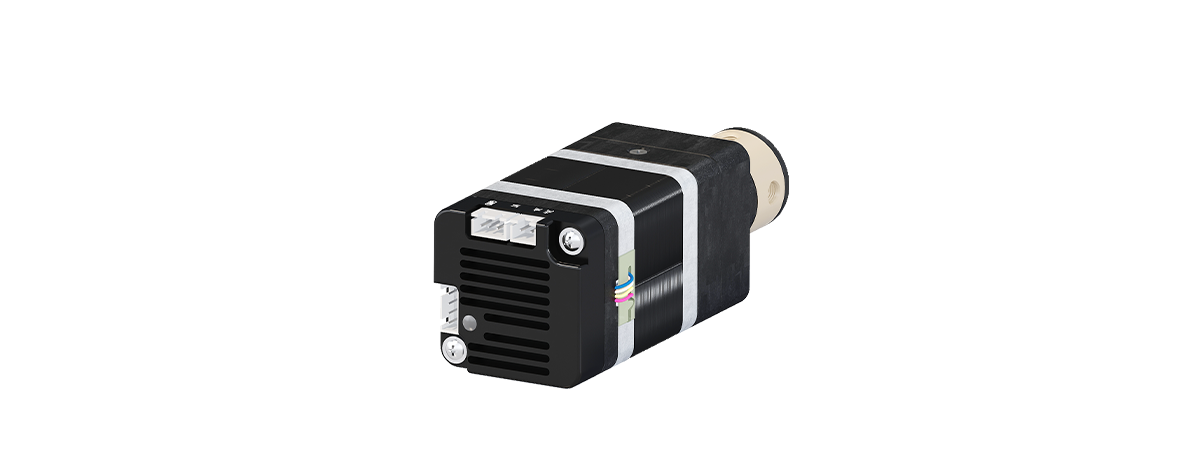

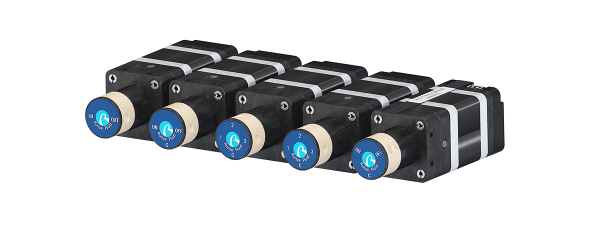

The MRV-01B High Pressure Valve is built to perform in high-demand fluid systems where strength, precision, and durability are non-negotiable. Designed for high-pressure applications, this valve ensures secure and stable fluid control in laboratory and industrial environments.
Engineered from corrosion-resistant materials and precision-machined for optimal flow performance, the MRV-01B is ideal for use in chromatography, chemical processing, and pressure-sensitive applications. Its compact design allows for easy integration into existing setups, while its rugged build ensures long-lasting reliability under extreme operating conditions.
Whether you’re managing aggressive solvents, high-pressure sampling, or precision control in analytical systems, the MRV-01B delivers unmatched performance and peace of mind.
| Flow Diameter | 1.5mm | ||

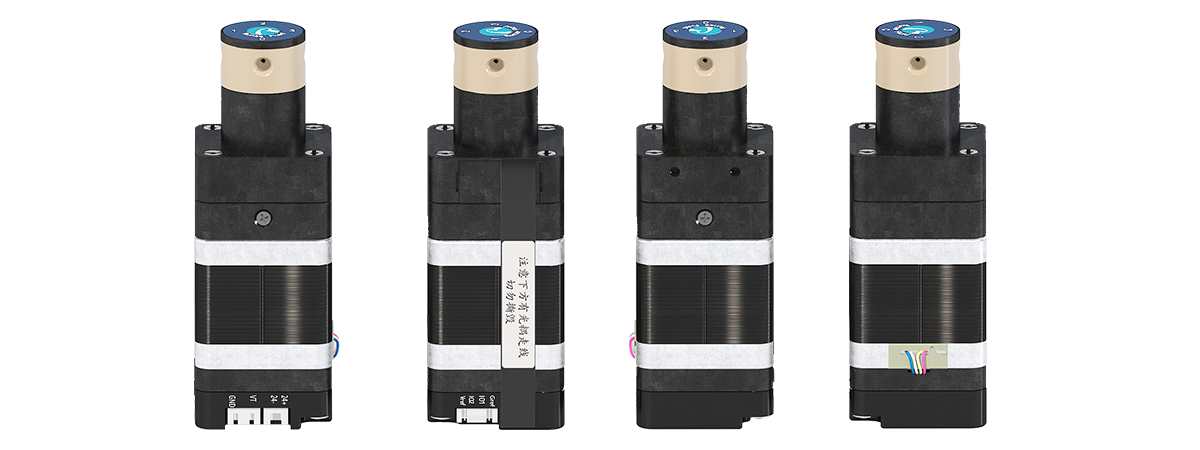

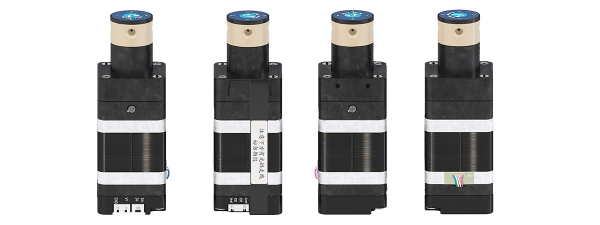

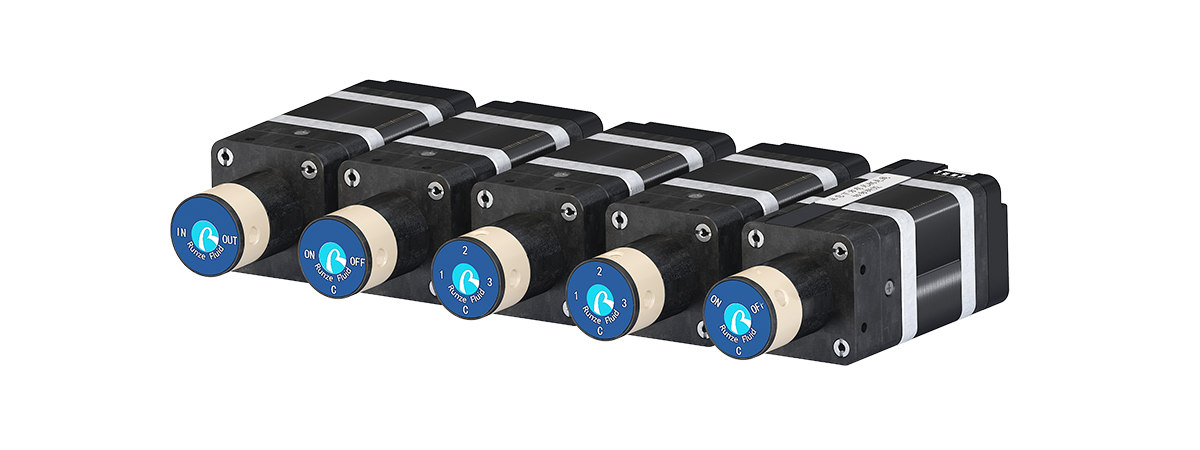

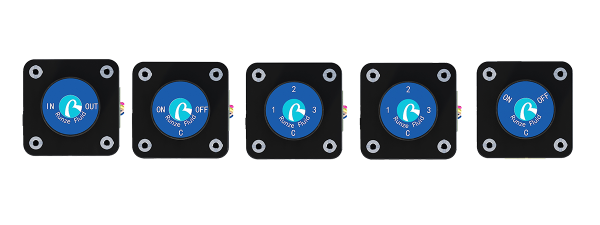

| Valve head model | M01 M02 M03 M04 M05 | ||
| Port to Port Volume ( μl) | 52.93 50.68 52.93 101.35 51.32 | ||
| Touch material | PCTFE, ceramics | ||
| Pressure resistant | Air pressure: 0~1Mpa / Water pressure: 0~1.2Mpa | ||
| Valve head over-liquid temperature | 0 to 80°C | ||
| Replaceable parts | Replacement of stator, rotor seal | ||
| Trigger signal | DC7-33V | ||
| State output signal | 3.3V-24V high and low level output | ||
| Applicable power supply | DC24V/1A | ||
| Use of power | 15W | ||
| Working environment temperature | Temperature: 0°C to +50 °C Relative humidity: <70% without condensation |
||
| Weight of equipment | 0.487Kg | ||
