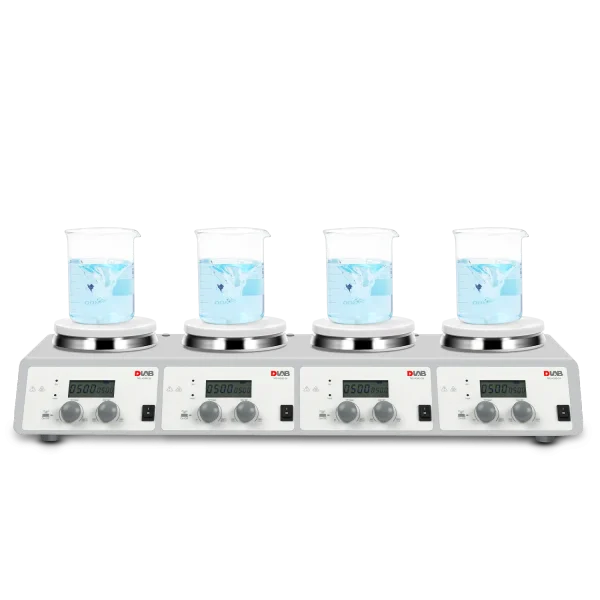

MS-H340-S4 LCD 4-Channel Digital Magnetic Hotplate Stirrer

DLAB MS-H340-S4 LCD 4-Channel Digital Magnetic Hotplate Stirrer – Precision and Efficiency for Multi-Sample Laboratory Applications

The DLAB MS-H340-S4 LCD 4-Channel Digital Magnetic Hotplate Stirrer is a high-performance laboratory hotplate stirrer designed to meet the rigorous demands of modern laboratories. With four independently controlled stirring positions, each capable of heating up to 340°C and stirring at speeds ranging from 200 to 1500 rpm, this DLAB hotplate stirrer offers precise and uniform heating and mixing, making it ideal for applications such as chemical synthesis, sample preparation, and general laboratory tasks.

Equipped with an intuitive LCD display, the MS-H340-S4 provides real-time monitoring of temperature and stirring speed for each channel, ensuring accurate control over experimental conditions. The hotplate features a heating temperature range from 25°C to 340°C, with a temperature display accuracy of ±0.1°C. For enhanced precision, an external temperature sensor (PT1000) can be connected, offering an accuracy of ±0.2°C .

Safety is paramount in the design of the MS-H340-S4. The hotplate includes overheating protection with a safety temperature set at 420°C to prevent overheating. Additionally, the stainless steel work plate with ceramic coating ensures excellent chemical resistance and durability.

Each of the four stirring positions operates independently, allowing for customized heating and stirring settings per sample. The brushless DC motors provide quiet, reliable, and maintenance-free operation with powerful speed control .

With its compact dimensions of 698 × 270 × 128 mm and a weight of 9.5 kg, the MS-H340-S4 is designed to fit seamlessly into any laboratory workspace. Its power consumption is rated at 515W per channel, with a heating output of 500W per channel, and it operates on a voltage frequency of 100–120V/200–240V, 50/60Hz .

Whether you’re conducting routine experiments or complex research, the DLAB MS-H340-S4 LCD 4-Channel Digital Magnetic Hotplate Stirrer provides the precision, safety, and reliability required for effective laboratory work.

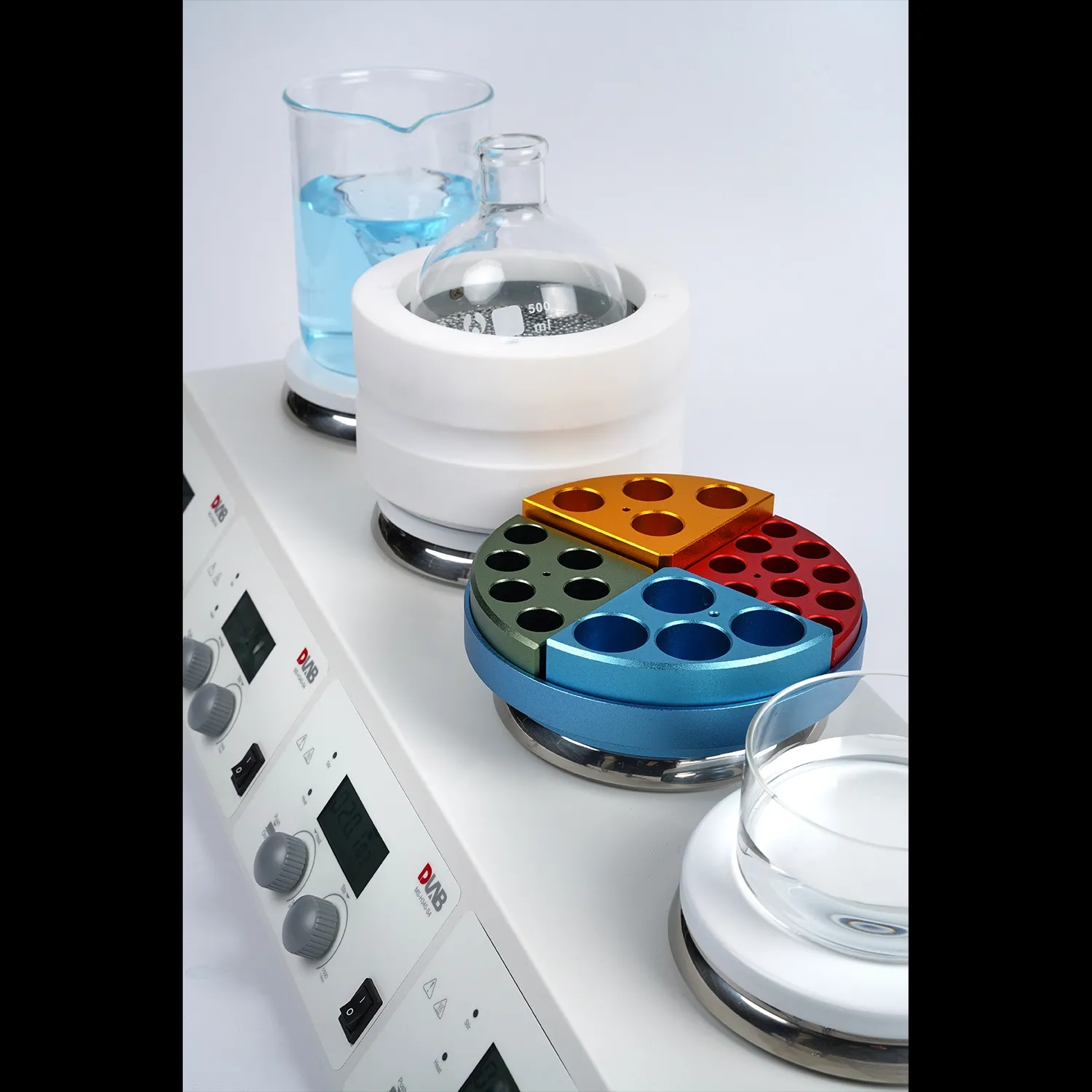

The MS-H340-S4 is a versatile 4-channel LCD digital magnetic hotplate stirrer, designed for labs that require simultaneous yet independent heating and stirring across multiple samples. Each of the four stirring positions offers individual control via an intuitive LCD interface, ensuring precise temperature and speed settings per channel.

Featuring ceramic-coated top plates, the MS-H340-S4 provides excellent chemical resistance, uniform heating, and easy cleanup. With built-in safety functions—such as over-temperature protection, hot surface warning, and independent circuit control—this unit enhances operational safety while maintaining performance across diverse experimental setups.

Ideal for chemical synthesis, quality control, or research labs, this multi-channel stirrer saves time, boosts productivity, and provides flexibility for parallel experiments—without sacrificing control or accuracy.
