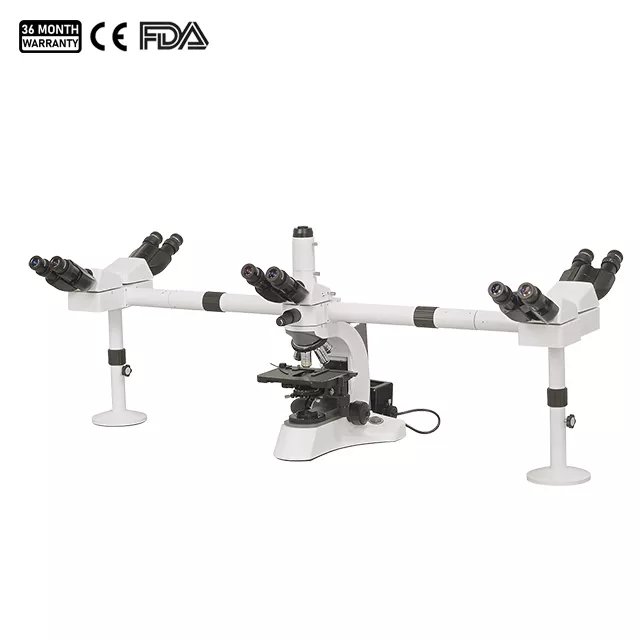

MSC-MV510T Multi-view Microscope

The MSC-MV510T Multi-view Microscope is designed to facilitate simultaneous observation by a larger group of individuals. Featuring a main viewing port and multiple additional viewing heads (the exact number may vary depending on the specific configuration), it’s an invaluable tool for lectures, demonstrations, and collaborative work in educational and research settings. This microscope allows instructors to guide students directly and enables dynamic discussions among multiple viewers, enhancing the learning and discovery process

Compare

Ask for Price

Multi-view Microscope Feature:

Equipped with two types of view heads to meet different user needs, supporting multiple simultaneous observations.
The heads are 360° rotatable, allowing users to adjust the observation angle flexibly and improve the comfort of observation.
The advanced infinite optical system provides excellent optical performance and ensures clear and accurate observation results.
The wide field of view makes it easier for users to capture the details of the sample.
Equipped with 4X, 10X, 40X, 100X infinite plan achromatic targets to meet different magnification observation needs.
Enables precise focusing to ensure a clear observation picture.
Provides a large and stable sample support platform for precise sample movement.
Equipped with a green LED indicator with adjustable brightness to help users accurately locate the observation area.

Category: Scientific Laboratory Brand: Scitek

Model	MSC-MV510T
View Head	Siedentopf trinocular head, Inclined at 30°, 360° Ratatable, Interpupilary distance 48-75mm (1pc, main microscope)
View Head	Siedentopf binocular head, Inclined at 30°, 360° Ratatable, Interpupilary distance 48-75mm (4pcs, secondary microscope)
Optical System	Infinite optical system
Eyepiece	Extra wide field evepiece WF10X/20
Objective	Infinite plan achromatic objective 4X, 10X, 40X, 100X
Nosepiece	Inverse quintuple nosepiece
Condenser	Swing condenser NA.0.9/0.25
Focusing	Coaxial coarse & Fine focus adjustment, Fine division 0.002mm
Stage	Double layers mechanical stage Stage Size: 185x142mm Moving Range: 75x55mm
lllumination	Kohler lllumination, External lllumination, Halogen Lamp 12V50W
Pointer	Green LED pointer, brightness adjustable
Photo Attachment	Optional
Video Adapter	C Mount 1 x (Optional); C Mount 0.5 x (Optional);
Power Supply	AC220/110V, 50/60Hz
Shipping Size (W×D×H)(mm)	500x420x700; 380x730x470
G.W. (kg)	16;17
