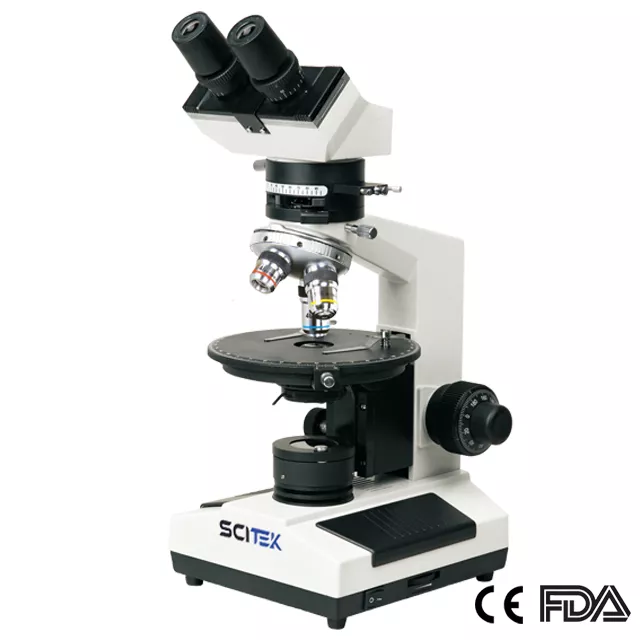

MSC-P107B/MSC-P107T Polarizing Microscope

The MSC‑P107B (binocular) and MSC‑P107T (trinocular) Polarizing Microscopes are tailored for mineralogical, petrographic, and materials‐science applications. They feature high‐contrast polarized illumination, precision compensators, and ergonomic heads for extended use, with the MSC‑P107T adding a camera port for documentation.

Compare

Ask for Price

The MSC‑P107 Series Polarizing Microscopes deliver crisp, high-contrast imaging for mineralogical and materials analysis. The MSC‑P107B offers binocular viewing, while the MSC‑P107T adds a trinocular port for camera integration. Both feature rotating polarizers, precision compensators, and plan achromatic optics, ensuring accurate characterization of birefringent specimens.

Category: Scientific Laboratory Brand: Scitek

Weight	8 kg
Dimensions	32.7 × 27.3 × 42.5 cm

Model	MSC-P107B	MSC-P107T
Viewing Head	Sliding Binocular Head at 45°, 360° Rotatable	Sliding Trinocular Head at 45°, 360°Rotatable
Eyepiece	Eyepiece WF10×/ 18 with Scale of Crosshair
Nosepiece	Toward Quadruple Nosepiece, Center Adjustable
Objective	Strain Free Achromatic Objective 4×, 10×, 40×
Analyzer	Rotatable Analyzer with Gradation 0°~90°
Bertrand Lens	Bertrand Lens, Sliding in/ out of Optical Path
Revolving Round Stage	Diameter Φ160mm, Graduated in 1° Increments, Minimum Resolution 6’ When Using Vernier Scale
Condenser	Abbe Condenser with Iris Diaphragm & Filter
Focusing	Coaxial Coarse & Fine Adjustment, Range 28mm, Fine Division 0.002mm
Polarizer	Sliding In/ Out of Optical Path, Located on the Top of Collector
Illumination	6V/ 20W Halogen Lamp, Brightness Adjustable
Power Supply	AC220/110V±10%, 50/60Hz
Shipping Size (W×D×H)(mm)	327x273x425
G.W. (kg)	8
