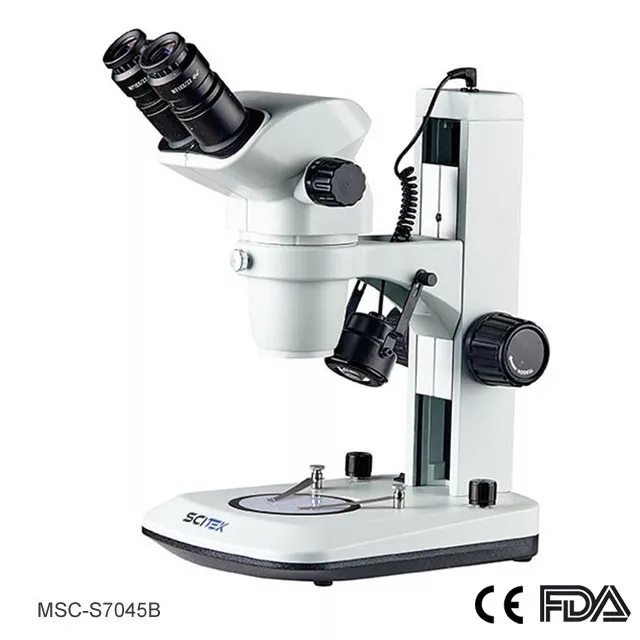

MSC-S7045B/MSC-S7045T Stereoscopic Microscope

The MSC‑S7045 Series Stereoscopic Microscopes are designed for high-precision 3D observation in industrial, research, and educational settings. The MSC‑S7045B offers a binocular head, while the MSC‑S7045T features a trinocular head for easy camera integration. Both models provide superior image clarity with their Greenough optical system, offering magnification from 0.7× to 4.5× and adjustable LED illumination for versatile applications.

Compare

Ask for Price

Stereoscopic Microscope Feature:

45° tilted binocular observation head
High-quality optical system with clear imaging
Wide field of view, large zoom ratio, high numerical aperture and long working distance.
Ergonomically designed column or rack-and-pinion mount.

Category: Scientific Laboratory Brand: Scitek

Weight	9 kg
Dimensions	51 × 36 × 30 cm

Model	MSC-S7045B	MSC-S7045T
Magnification	Zoom objective 6.7X-45X
Eyepiece	WF10X/22mm high-eyepoint, wide-field; Convenient for observers wearing glasses
	Optional Eyepiece 15X/16mm, 20X/12mm, 25X/9mm, 30X/8mm
Main Body	Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired. Diopter adjustment: ±5 diopters	Trinocular head, 45° inclined, 360° rotatable, can be locked in any position desired. Diopter adjustment: ±5 diopters
	Interpupillary distance adjustment: 54-75mm
Objective	0.67X-4.5X stereo zoom; Zoom Ratio: 6.7:1
	Aux Lens: 0.5X, 2X
Focusing Mount	Focusing track mount with vertical working distance 104mm
Stand	Track stand
	Vertical Height: 300mm; Mounting Size: φ76mm; Focusing Distance: 106mm;
	With φ95mm B/W Plastic & Perspex Plate and Paired Clips; Base Size: 205x275x40mm
Illumination	Top and bottom LED illumination with an independent control; Input power：110v~240v
C-Mount	MSC 1X C-Mount; xMSC 0.5X C-Mount;
NOTE: MSC-S7045B 3.35X-270X with optional eyepieces and objectives;
Shipping Size(W×D×H)(mm)	510x360x300
G.W. (kg)	9

MSC-S7045B/MSC-S7045T Stereoscopic Microscope

Stereoscopic Microscope Feature:

Stereoscopic Microscope Specifications:
