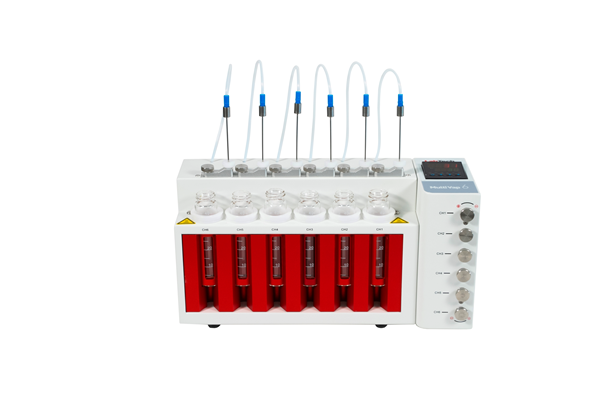

MultiVap 6 Concentrator


The MultiVap 6 is a basic, cost effective sample preparation instrument featuring 6 independent channels. Without transferring, samples are directly concentrated in the vial thereby reducing the risk of transfer loss, improving recovery and saving precious time. The nitrogen fl ow rate of each channel can be adjusted independently as well as the needles that can be adjusted up and down. The aluminum alloy heating block guarantees temperature uniformity for all samples.

Compare



Technical Specifications

Feature Specification
Sample Capacity Up to 6 samples of 40 ml
Operation Mode Parallel concentration model
Channel Control Simultaneous or separate operation of six channels
Concentration Method Nitrogen blow with heating concentration mode
Heating Technology Dry block heating (prevents water vapor interference)
Temperature Control P.I.D. with digital display
Nitrogen Needle Adjustment Adjustable positioning for efficient evaporation
Nitrogen Flow Regulation Dedicated regulator for each sample channel
Vial Compatibility Compatible with collection vials of Sepaths UP
Visibility “Open view” design for monitoring sample volume
Temperature Range Ambient to 120°C
Weight 8 kg
Dimensions (L×W×H) 13 × 35 × 20 cm
Power Supply 230V, 50/60Hz



Included

  • N° 6 – 40ml Collection bottles
  •  N° 1 – 220V Power Cord
  • N° 1 Two-way connector O.D4mm/O.D6mm
  • N° 1 PU Tubing O.D4mm, 2m
  •  N° 1 PU Tubing O.D6mm, 2m
  • N° 6 Nitrogen needles
  • N° 1 Flange tool
