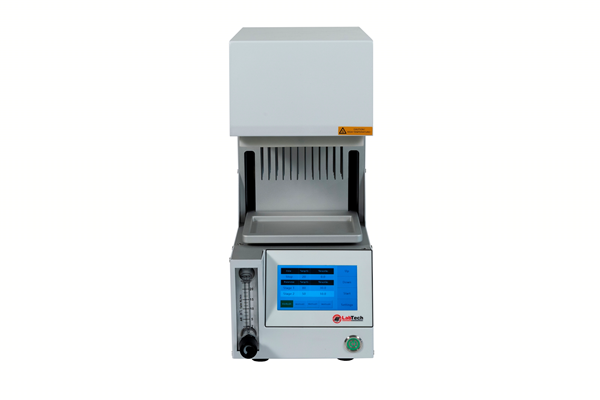

MultiVap 96-Multiplate Concentrator


The MultiVap 96, designed for microplates, features simple operation, and practical and reliable performance. It is designed for sample concentration with high throughput e.g. sample preparation in drug screening, hormone analysis, liquid chromatography, and mass spectrometry. The system adopts the most advanced direct nitrogen heating technique with higher efficiency than the bottom dry block heating mode, as the heating uniformity is greatly improved, and samples can be heated up to the evaporation point in short time.

Compare

Technical Specifications

Feature Specification
Channels & Needles 8 channels, 8 needles per channel (64 samples of 10 ml)
Operation Mode Individual or simultaneous needle operation
Nitrogen Needle Adjustment Automatic adjustment based on sample volume reduction
Visibility Front window and internal lights for monitoring
Safety Features Auto-locked cover during operation
Needle Replacement Easy replacement of nitrogen needles
Control Panel 7” touch-screen color display
Liquid Level Monitoring Low-level liquid alarm
Software Interface Intuitive user interface
Heating Mode Liquid bath heating
Temperature Control P.I.D. (Proportional-Integral-Derivative)
Temperature Range Ambient to 100°C
Nitrogen Requirement 2 to 6.8 bar (30 to 100 psi)
Weight 30 kg
Dimensions (L×W×H) 50 × 50 × 69 cm (open) / 50 × 50 × 45 cm (closed)
Power Supply 230V, 50/60Hz

Included:

  • N° 64 + 10 Needles for nitrogen channels
  •  N° 8 Needle O-ring seals
  •  N° 1 Spare fuse set
  •  N° 1 Exhaust fume tube 3m
  • N° 1 Water bath drain tube
  • N° 1 Electric power cable
  • N° 1 – 64 position vial rack (10ml volume)
  • N° 100 – 10ml glass vials
  • N° 100 – 10ml PP vials
  • N° 64 plugs to close nitrogen channels
SKU: LT-00102 Category: Brand:
