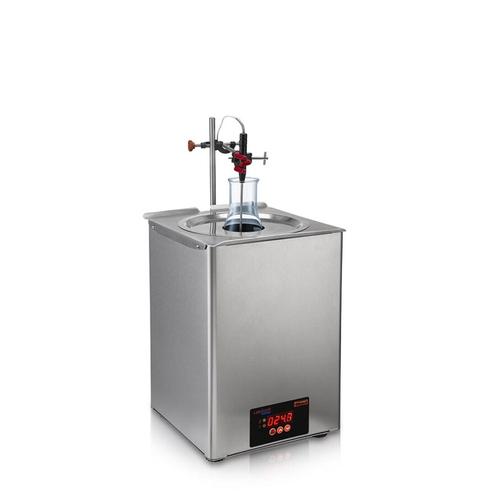

Oil Bath

The oil bath is a laboratory heating device that offers uniform and controlled high-temperature conditions. Commonly used for chemical reactions, distillations, or viscosity testing, it ensures safety and stability when direct heating methods are unsuitable or risky.

Compare

Ask for Price

Main Features of the Oil Bath

Made from stainless steel
Perforated base plate and supplied with lid
Temperature control of either internal or external with a PT 100 probe
Microprocessor PID control
Cylindrical interior tank with small footprint
Available with an inbuilt stirrer option for uniform heat transfer

Model Name	OMC010	OMC250
Working Temperature Range	Ambient +5 °C to 240 °C	Ambient +5 °C to 240 °C
Circulation Type	Convection	Convection
Nominal Capacity	750 ml	3057 ml
Compatible RB Flask	250 ml	1000 ml
Interior Dimensions (D × H, mm)	120 × 86	182 × 142
Exterior Dimensions (L × B × H, mm)	203 × 169 × 209	273 × 240 × 263
Power Consumption	300 W	800 W

Model Name	OMS010	OMS020	OMS250
Working Temperature Range	Ambient +5 °C to 240 °C	Ambient +5 °C to 240 °C	Ambient +5 °C to 240 °C
Circulation Type	PTFE Stir Bar	PTFE Stir Bar	PTFE Stir Bar
Nominal Capacity	750 ml	3057 ml	7500 ml
Compatible RB Flask	250 ml	1000 ml	2000 ml
Interior Dimensions (D × H, mm)	120 × 86	182 × 142	217 × 209
Exterior Dimensions (L × B × H, mm)	203 × 169 × 209	273 × 240 × 263	302 × 280 × 410
Power Consumption	300 W	800 W	1500 W
