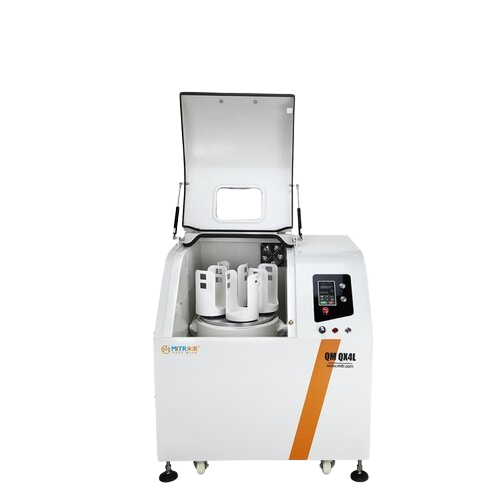

Omnidirectional Planetary Ball Mill QM series

This Omnidirectional Planetary Ball Mill QM series can be equipped with vacuum ball mill jar, which can grind samples under vacuum. They are very suitable for scientific research units, colleges and universities, and corporate laboratories to obtain nano-scale particle research samples, medium production and other research tasks, as well as routine tasks such as mixing and homogenizing soft, hard, brittle or fibrous materials. The extremely high centrifugal force of the omnidirectional planetary ball mill results in very high comminution energy, so the grinding time is short and the 360° rotation makes the discharge more uniform. Suitable for all industries where the quality control process places the highest demands on purity, speed, fineness and reproducibility.

Technical Specification of Omnidirectional Planetary Ball Mill QM series

Applications	Crushing, mixing, homogenizing, colloid grinding, mechanical alloying, mechanochemistry
Field of application	New energy, geology/metallurgy, glass/ceramics, engineering/electronics, building materials, environment/recycling, agriculture, chemistry, medicine, biology
Feed material	Soft, hard, brittle, fibrous—dry or wet
Size reduction principle	Impact force, friction
Material Feed Size	< 5 mm soil<10 mm
Final Fineness *	Used for colloid grinding, the sample is less than 0.1 micron
No. of Grinding Stations	4
Grinding method	Can be dry grinding, wet grinding, vacuum grinding, atmosphere protection grinding
Grinding jar material	Stainless steel, carbide, zirconium oxide, aluminum oxide, silicon carbide, silicon nitride, polyurethane, nylon, polytetrafluoroethylene, agate
Speed ratio	1 : 2
Operation Mode	3 types: unidirectional, alternating forward and reverse, multi-stage
Storable SOPs	15
Time setting	Run/stop time: 0-9999 minutes
Power protection	Power-off protection memory self-start function
Model	QM-QX2L			QM-QX4L
Grinding jar capacity	50-500ml			50-1000ml
Vacuum jar capacity	50-250ml			50-500ml
Revolution speed	5-400r/min			5-400r/min
Rotation speed	10-800r/min			10-800r/min
Power	0.75kw			0.75kw
Voltage	Single phase, 220V/50Hz
Dimension(W x H x D)	850x890x960mm
Weight	210kg			215kg
Model	QM-QX8L		QM-QX12L	QM-QX16L	QM-QX20L
Grinding jar capacity	500-2000ml		1000-3000ml	1000-4000ml	1000-5000ml
Vacuum jar capacity	500-2000ml		1000-3000ml	1000-4000ml	1000-5000ml
Revolution speed	5-320r/min		5-320r/min	5-230r/min	5-230r/min
Rotation speed	10-640r/min		10-640r/min	10-460r/min	10-460r/min
Power	1.5KW		1.5KW	3.7KW	3.7KW
Voltage	Three-phase, 380V/50Hz
Dimension(W x H x D)	1010 x 1050x 1230          mm		1270 x 1100 x 1420 mm
Weight	415kg		415kg	590kg	590kg
*Affected by sample material properties and instrument configuration/settings
