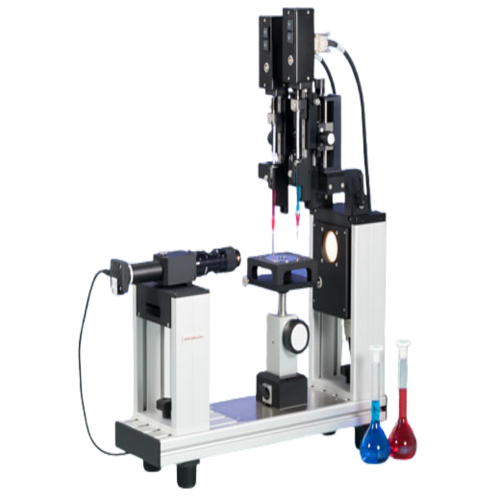

The Optical contact angle measuring- OCA 15EC is the entry level measuring device for professional contact angle measurements and drop shape analysis. The sample table of the OCA 15EC can slide freely in X- and Y-direction and is locked into position with its switchable magnetic base. In Z-direction the sample table is adjustable using precision mechanics with a hand wheel. The fast 6.5-fold zoom lens with manual focus and adjustable observation angle in combination with the USB 3 camera ensures pin-sharp drop images and facilitates the effortless analysis with the software. With a single direct dosing system SD-DM or a double direct dosing system DD-DM liquids can be positioned and dosed with one or two electronic syringe modules ESr-N, respectively. Direct tubeless dosing of the syringe content and the ability to use cost-saving disposable syringes and needles allow for short preparation times and minimal cleaning efforts.
Features of Optical contact angle measuring- OCA 15EC
- sample table horizontally movable (magnetic slide system) and adjustable vertically with precision mechanics
- high performance 6.5-fold zoom lens
- integrated continuous fine focus, and adjustable observation angle
- video measuring system with USB 3 camera
- LED-lighting with manual and software controlled intensity including automatic temperature drift compensation
Technical Specification
| Contact angle | ○ |
| measuring range | 0 … 180° |
| accuracy | ± 0.1° |
| resolution | ± 0.01° |
| Surface and interfacial tension | ○ |
| measuring range | 0.01 … 2000 mN/m |
| resolution | ± 0.01 mN/m |
| Surface energy | ○ |
| Liquid bridge analysis | ○ |
| Oscillation / relaxation | ○ |
| Topview contact angle | ― |
| Sample table | sliding magnetic base |
| traversing range (X-axis [mm] x Y-axis [mm] x Z-axis [mm]) | 110 x 90 x 42 |
| traversing speed (X-axis) | ― |
| traversing speed (Y-axis) | ― |
| traversing speed (Z-axis) | ― |
| positioning resolution | ― |
| max. sample weight | 3.0 kg (locked Z-axis: 15.0 kg) |
| LED-lighting with manual and software-controlled intensity including automatic temperature drift compensation | |
| warm-white LED (3000 K) | ● |
| monochromatic red LED (660 nm) | ○ |
| monochromatic blue LED (465 nm) | ○ |
| Temperature and environmental control | |
| temperature chambers (-30 °C to 700 °C) | ○ |
| electrical needle heating device (RT … 700 °C) | ○ |
| humidity generator of the HGC series | ○ |
| Optics | |
| 6.5-fold zoom lens with integrated manual focus (± 6 mm) | ● |
| 10-fold zoom lens with software-controlled focus (± 4,5 mm) and observation angle (-9° … +2°2‘) | ― |
| field of view (X min x Y min) … (X max x Y max) | |
| (1.11 mm x 0.83 mm) … (7.14 mm x 5.35 mm) | ● |
| (2.50 mm x 1.33 mm) … (16.09 mm x 8.55 mm) | ○ |
| (1.12 mm x 0.58 mm) … (11.29 mm x 5.98 mm) | ― |
| Camera system | |
| USB 3 camera, 1/3″ sensor
max. resolution 1440 x 1080 pixel with 227 frames/s, max. frame rate 3246 frames/s |
● |
| USB 3 camera, 2/3″ sensor
max. resolution 2048 x 1088 pixel with 170 frames/s, max. frame rate 4276 frames/s |
○ |
| high-speed camera system | on request |
| TP 50 control panel | ○ |
| Dimensions (L [mm] x W [mm] x H [mm]) | 550 x 160 x 365 |
| Weight | 14 kg |
| Power supply | 100 … 240 VAC;
50 … 60 Hz; 70 W |
- integrated ○with optional software/accessory ― not available
