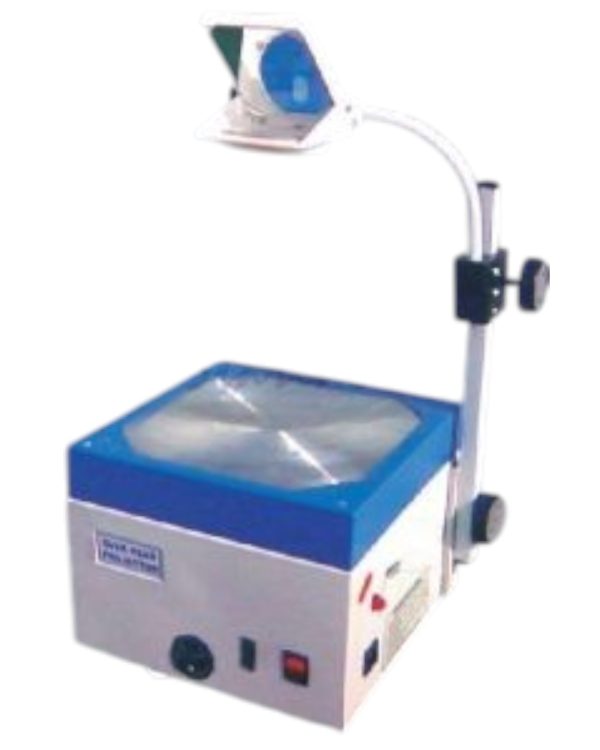

Over Head Projector (O.H.P.)

Features Of Over Head Projector (O.H.P.)

• Compact, Lightweight & Sturdy Design:

  • Designed for durability and portability.
  • Can be used for extended periods due to low heat generation.

• High-Performance Illumination System:

  • Low-voltage halogen lamp (24V/250W) for bright and efficient projection.
  • Fresnel condenser lens ensures optimal brightness and clarity.
  • Thermostatic-controlled cooling system for prolonged use.

• Projection Stage & Optics:

  • Projection writing stage: 250×250 mm, made from ABS plastic for durability.
  • Projection lens: Single-element lens (F-254 mm) for sharp image quality.
  • Projection distance: Adjustable from 1.0 to 3.0 meters.

• Advanced Focusing & Elevation Mechanism:

  • Rack & pinion focusing system for precise image adjustment.
  • Elevation device for easy height adjustment.

• Smart Power & Safety Features:

  • Interlocked light control switch protects the lamp from voltage surges.
  • Allows adjustment of light intensity as needed.
  • Operates on AC 220-240V, 50Hz power supply.

• Additional Accessories Included:

  • Supplied in a sturdy cardboard box for safe storage.
  • Comes with cellophane roll & attachment, cleaning cloth, vinyl cover, and operating instructions.
