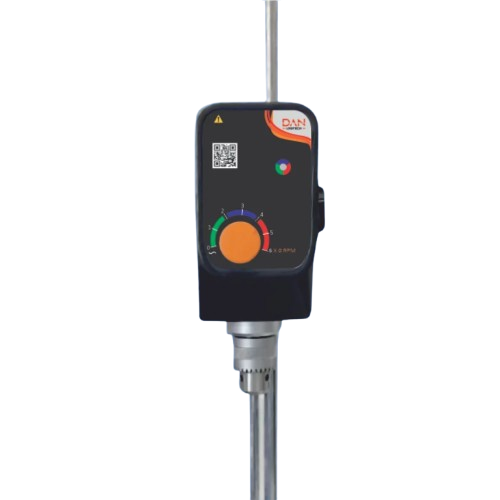

The Analog Overhead Stirrer is a robust and cost-effective mixing solution for laboratory applications requiring continuous or semi-continuous mixing of liquids with varying viscosities. Designed with simplicity and durability in mind, this stirrer is perfect for users who prefer manual control without digital interfaces or network connectivity. It is equipped with a high-performance AC or DC motor capable of delivering high torque across a wide speed range. A rotary dial allows intuitive speed adjustment, while a mechanical scale indicator provides reference feedback for setting reproducible speeds. This analog model is ideal for everyday mixing tasks, offering consistent operation and low maintenance in laboratories, educational settings, and production environments. Its compact footprint and heavy-duty stand make it adaptable for various container sizes and volumes, from small beakers to large flasks, up to 20–40 liters, depending on the model.

Features of Overhead Stirrer (Analog)

  • Easy Stir Controls
  • User Friendly
  • Brushless DC motor
  • Liquid cannot reach internal components due to front safeguard
  • Prominent used in chemical synthesis, pharmaceuticals, physical & chemical analysis, petrochemical, cosmetics, health products, foods, biotechnology etc.



Technical Specification

Model No. 6025.DNEU.01
Speed Range 0-3000RPM
Max. Torque 65N.cm
Max. Viscosity 6000 mPass
Max. Stirring 40L
Stirring Shaft Extension Feature Yes
Motor Type BLDC
Operating Voltage 24VDC
Supply Voltage 100 – 240Vac, 50/60Hz
Power 130
Dimension 90x240x220mm
Net Weight 11.2 kg
IP Class 54
