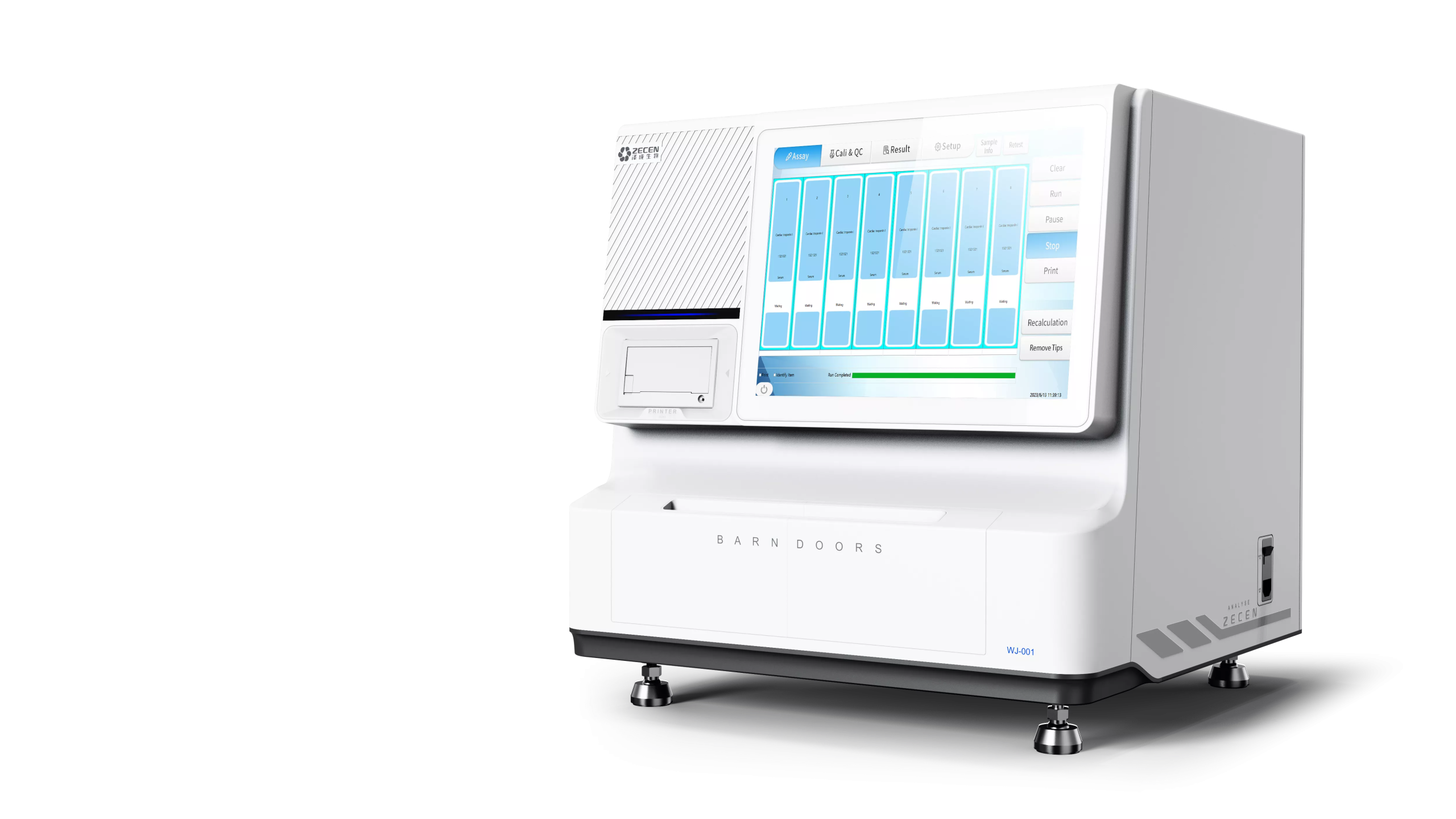

POCT Chemiluminescence Immunoassay Analyzer

Product Advantage

• More accurate: Enzyme-catalyzed (ALP) chemiluminescence, the results are accurate
• More stable: CV≤5%, Instrument without a liquid flow system, ultra-low failure rate
• Faster: quick results in 15 minutes; 8 channels in parallel, quickly process a large number of samples
• More economical: single serving, no waste

Specifications and performance:

• Double chambers operate independently and can realize the emergency function
• Test batch size: 32-channel parallel test (random test item combination)
• Test time: Depending on the test item
• Sample type: Human plasma/Serum/Plasma/Urine(depends on reagent type)
• Principle: CLEIA and Magnetic separation methodology
• Incubation temperature :37 ℃-42℃（depends on reagent type）
• Sample volume: 30-200ul（depends on reagent type）
• Spectrum: 300- 650 nm Data storage
• Patient data: >100000 QC Data >100000
• Calibration Data >100000
• Dimensions ：520（W）*550（D）*550（H）mm
• Weight ：55kg（approx）Power supply：100-240 VAC
• Power frequency: 50Hz, Input power： 200VA
• Printer： Built-in Computer
