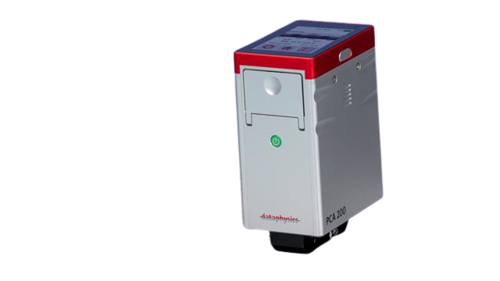

Portable Contact Angle Goniometer ? PCA 200

The Portable Contact Angle Goniometer – PCA 200 by DataPhysics Instruments is a compact, handheld device designed for on-site, non-destructive measurement of surface energy on solid surfaces of any size. It serves as a quantitative alternative to traditional test inks, offering objective and reproducible assessments of surface wettability

Features of Portable Contact Angle Goniometer – PCA 200

• Stand-alone, mobile device: as a compact and mobile hand-held device, the PCA 200 can be used directly on site, wherever it is needed. Thanks to the integrated computer and software, it can be operated as a wireless, stand-alone measurement solution.
• Display with live preview image: before the measurement, the device display provides a live preview image of the surface to be analysed. This function allows visual inspection and adjustment to ensure that each measurement is taken in exactly the right place. After the measurement, the device immediately shows the measured values on its display.
• Measurement with two test liquids: the PCA 200 can dispense the test liquids diiodomethane and water simultaneously, and directly measure their contact angles on the solid sample. This makes it possible to determine the surface energy at the touch of a button, increasing the efficiency of work processes.
• Quickly determine the surface energy: the PCA 200 determines the surface energy of samples quickly and reliably using well established interaction models (OWRK and Wu model). These models enable a differentiated analysis of the polar and dispersive components of the surface energy.
• Long operating time: with a powerful lithium-ion battery, the PCA 200 is equipped for a long operating time. In addition, the cartridges for the two test liquids are sufficiently large to allow a great number of measurements without having to refill them.

Technical Specifications

Contact angle

• sessile drop method

Measuring range

• 0 … 180°

Resolution

• ± 0.01°

Surface energy of solids

• based on contact angles of water and diiodomethane

Supported evaluation models

• integrated: OWRK, Wu
• additional models via optional dpiMAX software

Dosing system

• integrated dosing system for two liquids

Test liquids

• water and diiodomethane

Typical drop size

• ≅ 1 μl

Cartridge volume

• 1.2 ml

Integrated screen

• 2.8″ touch colour IPS display

Device control and software

• stand-alone via integrated touch-screen and control button

Measurement

• stand-alone one-click measurement

Evaluation

• stand-alone, on device evaluation of contact angles and surface energy

Data export

• to PC over USB-C cable, easy-to-use browser based user interface

Export formats

• Excel, dpiMAX

Sample recognition

• via integrated code reader for 1-D and 2-D codes

Supported formats

• Code 39, Code 128, UPC-A, EAN-13, Code 93, Code 11, QR Code, Data Matrix, PDF417, etc.

Dimensions (L x W x H)

• 90 mm x 60 mm x 137 mm

footprint (L x W)

• 63 mm x 25 mm

Weight

• 820 g

Power supply

• integrated lithium-ion battery; rechargeable via USB-C port
• battery capacity 17.76 Wh (≅ 6 h runtime)
