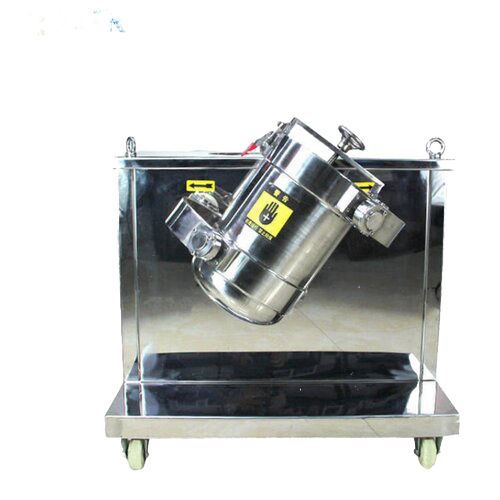

Powder 3D Mixing Machine are widely used in the efficient mixing of powdery and granular materials in pharmaceutical, chemical, food, light industry, electronics, machinery, mining and metallurgy, national defense industry and various scientific research units.
Technical Specification of Powder 3D Mixing Machine
| Name | Small experiment 3D mixer | ||
| Model | S-5L | S-10L | S-20L |
| Capacity | 5L | 10L | 20L |
| Available capacity | 50-70% of grinding tank | ||
| Optimal mixing capacity | Not less than 10% of grinding tank | ||
| Load Weight Limits | 20kg | ||
| Mixing time | 0-99H | ||
| Suitable for mixing materials | Powder | ||
| Time Range | 0-99H | ||
| Tube material | 304L | ||
| Thickness of barrel | 2mm | ||
| Thickness of seal plate | 1.5mm | ||
| Support internal motor plate | 10mm | ||
| Power | 1KW | ||
| power of motor | 0.75KW | ||
| Reduction box | WPDA-70 | ||
| Speed of main-shaft | 13 RPM | ||
| Electrical protection grade | 3 grade | ||
| self-aligning bearing | UCP-35 | ||
| Dimension | 800*800*800 | ||
| Distance of outlet from ground | 350 | ||
| Import and Export Dimensions | 110 | ||
| driving mode | Gear reducer direct transmission | ||
| weight | 120KG | 130KG | 145KG |
