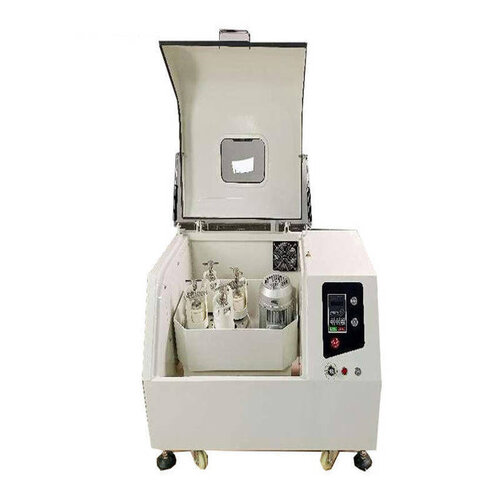

QM-QX0.4L Omnidirectional Planetary Ball Mill is used for high-tech micro computer chip control.It can run alternately for positive turn and reverse turn(0-999min), and run alternately for positive turn and pause,reverse and pause,and than positive run. It is especially suitable for cooling or intermittent operation.
Technical Specification of QM-QX0.4L Omnidirectional Planetary Ball Mill
| Brand Name | MITR |
| Model | 360 degree rotating planetary ball mill- MITR-QMQX-0.4L |
| Grinding tank volume（ml） | 50ml-100ml |
| General grinding jar material selection | Metal material selection：304 stainless steel、Tungsten carbide（YG8) |
| Nonmetal material selection：ceramic / corundum / alumina, zirconia, agate | |
| high polymer material selection：Nylon, polyurethane, polytetrafluoroethylene(PTFE) | |
| General grinding ball material selection | Stainless steel,ceramic,corundum,alumina,zirconia, agate, tungsten carbide |
| Maximum loading per jar | Raw material and grinding ball less than 1/3 of grinding jar |
| Feeding granularity | Friable material less than 10mm,others less than 3mm |
| Discharging granularity | minimum up to 0.1μm |
| Grinding Method | Dry grinding / wet grinding / high energy alloying grinding / vacuum grinding(need customized) / low temperature grinding(need customized） |
| Planetary speed (variable frequency adjustable) | Max Revolution 0-450r/min，Rotation 0-900r/min
Planetary total speed：0-3600r/min |
| 360 degree speed(variable frequency adjustable) | 20/min |
| Speed ratio（revolution:rotation） | 1:2 |
| Adjusting speed control method | PLC Frequency conversion control system,Touch screen control system |
| Driving style | Gear drive |
| Grinding ball ratio(the detail ratio contact customer service)The right sheet is just for reference.In fact that we are matching according to the customer requirement. | General grinding over 800 mesh(5mm;10mm;15mm) feeding material less than 3mm |
| Fine grinding 800-1500 mesh(3mm;5mm;10mm;)feeding material less than 1mm | |
| Super fine grinding over 1500 mesh(0.1~10μm)(1mm;3mm;5mm)feeding material less than 200 mesh | |
| Voltage | 220V |
| Power | 0.55Kw |
| Working method | Two or four cans working at the same time |
| Maximum continueworking time | 72h（Timing 0-9999h） |
| Programmed control | The ball grinding used for high-tech micro computer chip control.It can run alternately for positive turn and reverse turn(0-999min), and run alternately for positive turn and pause,reverse and pause,and than positive run. It is especially suitable for cooling or intermittent operation. |
| Weight | 140kg |
| Dimension | 99*55*65（cm） |
