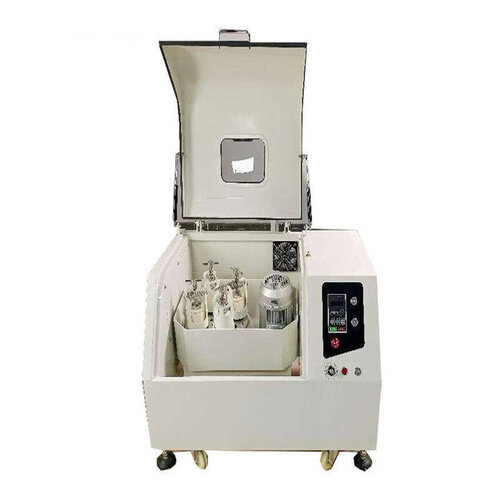

QM-QX1L Omnidirectional Planetary Ball Mill is used high-tech chip control of micro computer.It can alternately ofcorotationand reversal(0-999min)andpause.It is especially suitable for cooling or intermittent operation.
Technical Specification of QM-QX1L Omnidirectional Planetary Ball Mill
| Brand Name | MITR |
| Model | 360 degree rotating planetary ball mill-MITR-QMQX-1L |
| Grinding tank volume（ml） | 50ml-250ml |
| Materialof grinding jar | Metal material：304 stainless steel、Tungsten carbide（YG8) |
| ceramic / corundum / alumina, zirconia, agate | |
| High polymer material：Nylon, polyurethane, polytetrafluoroethylene(PTFE) | |
| materialof grinding ball | Stainless steel,ceramic,corundum,alumina,zirconia, agate, tungsten carbide |
| Maximum loading per jar | Raw material and grinding ball are not exceed2/3 of grinding jar |
| Feeding granularity | Friable material less than 10mm,others less than 3mm |
| Discharging granularity | Minimum downto0.1μm |
| Grinding Method | Dry/wet/ high energy alloying/vacuum (need customized) / low temperature grinding(need customized） |
| Planetary speed | Max Revolution 0-450r/min，Rotation0-900r/min
Planetary total speed：0-3600r/min |
| 360 degree speed | 1-14RPM |
| speed ratio（revolution:rotation） | 1:2 |
| Adjusting speed control method | PLC Frequency conversion control system,Touch screen control system |
| Driving mode | Gear drive |
| Grinding ball ratio(the detail ratio contact customer service)The right sheet is just for reference.In fact that we are matching according to the customer requirement. | Usuallygrinding over 800 mesh(5mm;10mm;15mm) feeding material less than 3mm |
| Fine grinding 800-1500 mesh(3mm;5mm;10mm;)feeding material less than 1mm | |
| Super fine grinding over 1500 mesh(0.1~10μm)(1mm;3mm;5mm)feeding material less than 200 mesh | |
| Voltage | 220V |
| Power | 0.55Kw |
| Working method | Two or four cans working at the same time |
| Maximum continueworking time | 72h（Timing 0-9999h） |
| Programmed control | The ball millused high-tech chip controlof micro computer.It can alternately ofcorotationand reversal(0-999min)andpause.It is especially suitable for cooling or intermittent operation. |
| Weight | 170kg |
| Dimension | 95*55*65 |
