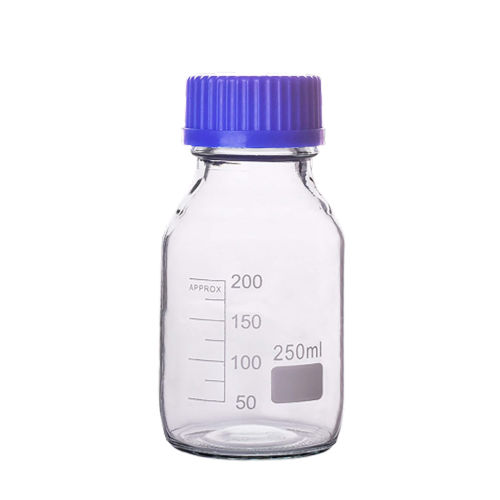

Reagent Bottle(Screw Neck DIN/ISO)

A Reagent Bottle (Screw Neck DIN/ISO) is a standardized laboratory container used for safe storage, mixing, and transport of chemical reagents, solutions, and biological media. Designed according to DIN (Deutsches Institut für Normung) and ISO (International Organization for Standardization) specifications—typically DIN 168 / ISO 4796—these bottles ensure international compatibility and consistent quality. They are generally made from borosilicate glass (e.g., type 3.3) for chemical durability and thermal shock resistance, or high-quality laboratory-grade plastics (e.g., HDPE or PP) for lightweight and unbreakable use. The screw neck features standardized GL threads (commonly GL32, GL45, GL80), ensuring secure sealing with compatible screw caps, septum adapters, or tamper-evident closures. These bottles often include graduated volume markings, wide mouths for easy pouring, and autoclavable caps and pouring rings for sterile environments.

Technical Specification of Reagent Bottle(Screw Neck DIN/ISO)

• Material Options:

  • Borosilicate Glass 3.3: High chemical/thermal resistance

  • PP or HDPE: Lightweight, chemical-resistant plastic

• Neck Type: Screw neck with DIN/ISO standard threads (GL32 / GL45 / GL80)

• Volume Capacities: 50 mL to 10,000 mL (10 L)

• Graduation Marks: Printed or molded for approximate volume reference

• Cap:

  • Polypropylene (PP) screw cap with or without liner

  • Leak-proof, autoclavable

  • Color-coded caps available (blue, red, yellow, green)

• Pouring Ring: Often included to prevent drips and ensure controlled pouring

• Temperature Range:

  • Glass: Up to ~140–160°C (autoclavable)

  • Plastic: Up to ~110–121°C depending on type
