Recirculating Chiller and heater - Image 2

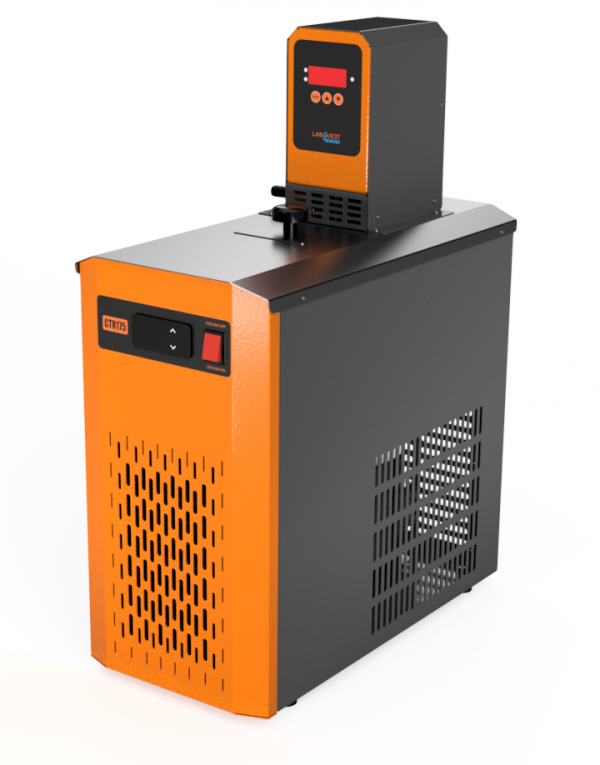

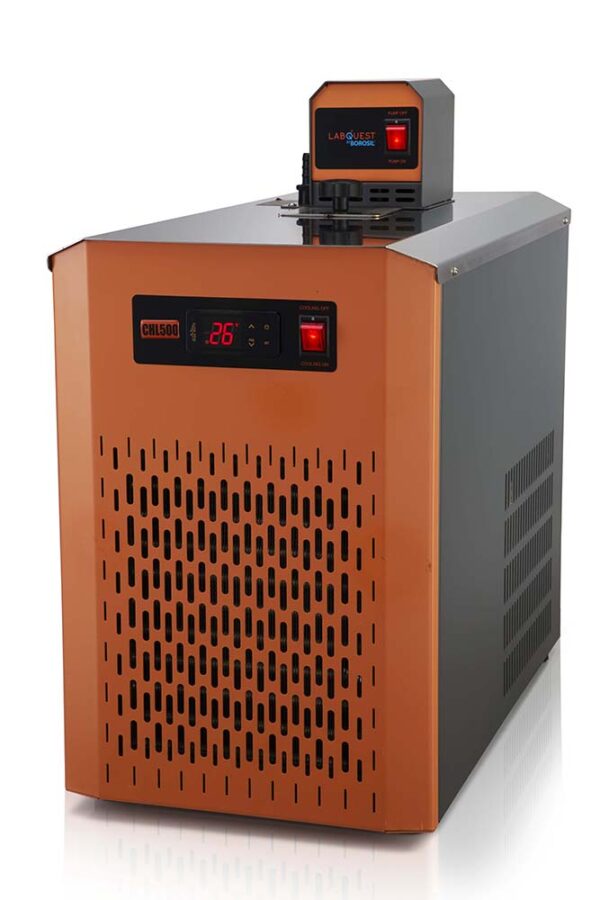

Recirculating Chiller and heater

This versatile recirculating chiller and heater offers accurate temperature regulation from sub-ambient to high temperatures. It features a compact design, digital controls, and consistent performance for laboratory equipment, rotary evaporators, and analytical instruments that demand thermal stability and efficiency.

Compare

Ask for Price

Main Features

Made from stainless steel
Perforated base plate
Drain tap 12L & above models
Two point calibration
Display resolution 0.1 c
Forced circulation by ohs
Seamless SS deep drawn pan
Microprocessor pid control
Small footprint
Built in dry run protection
Timer upto 99:59 hh:mm
Safe to touch display

Category: Scientific Laboratory Tags: Chiller, heater, Recirculating Brand: Borosil Scientific

Model Name	CHL175	CHL500	CHL010
Tank Capacity	5 L	7.5 L	10 L
Tank Size (L×B×H) mm	325 × 176 × 150	325 × 265 × 150	325 × 265 × 200
Overall Dimensions (mm)	508 × 257 × 596	594 × 327 × 596	594 × 396 × 723
Cooling Capacity	175 W	500 W	1000 W
Pump Flow Rate	12.5 LPM	12.5 LPM	12.5 LPM
Display	LED	LED	LED
Temperature Stability	±1.0 °C	±1.0 °C	±1.0 °C
Temperature Range	-10 °C to ambient -5 °C	-10 °C to ambient -5 °C	-10 °C to ambient -5 °C
Castor Wheels	No	Yes	Yes

Specification	CTR175	CTR500	CTR010
Tank Capacity	5 L	7.5 L	10 L
Tank Size (L x B x H)	325 x 176 x 150 mm	325 x 265 x 150 mm	325 x 265 x 200 mm
Overall Dimensions	508 x 257 x 596 mm	594 x 327 x 596 mm	594 x 396 x 723 mm
Cooling Capacity	175 W	500 W	1000 W
Pump Flow Rate	12.5 LPM	12.5 LPM	12.5 LPM
Heater Capacity	1200 W	1800 W	1800 W
Display	LED	LED	LED
Temperature Stability	±1.0 °C	±1.0 °C	±1.0 °C
Temperature Range	-10 °C to 100 °C	-10 °C to 100 °C	-10 °C to 100 °C
Castor Wheels	Not Available	Yes	Yes
