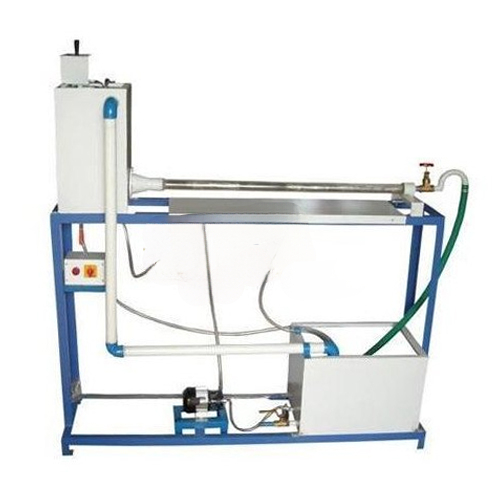

Features Of Reynold’s Apparatus
- Experimental Setup: Designed to verify Reynold’s Apparatus experimentally.
- Glass Tube: Made of borosilicate glass with a bell-mouth entrance for smooth water flow.
- Flow Control: Adjustable cock at the tube’s end to vary the flow rate.
- Flow Measurement: Includes a measuring cylinder and stopwatch for accurate readings.
- Dye Injection System: Capillary tube centrally placed in the bell mouth, connected to a dye vessel.
- Dye Vessel: Made of stainless steel with suitable capacity for continuous dye flow.
- Capillary Tube Material: Available in copper or stainless steel for durability.
- Constant Head Water Tank: 40-liter capacity ensures stable water flow.
- Water Circulation: Powered by an FHP pump for efficient operation.
- Sump Tank: 60-liter capacity for water collection and recirculation.
- Control Panel: Features an on/off switch and mains indicator for ease of operation.
- Sturdy Construction: Well-designed and arranged on a high-quality painted structure for durability.
