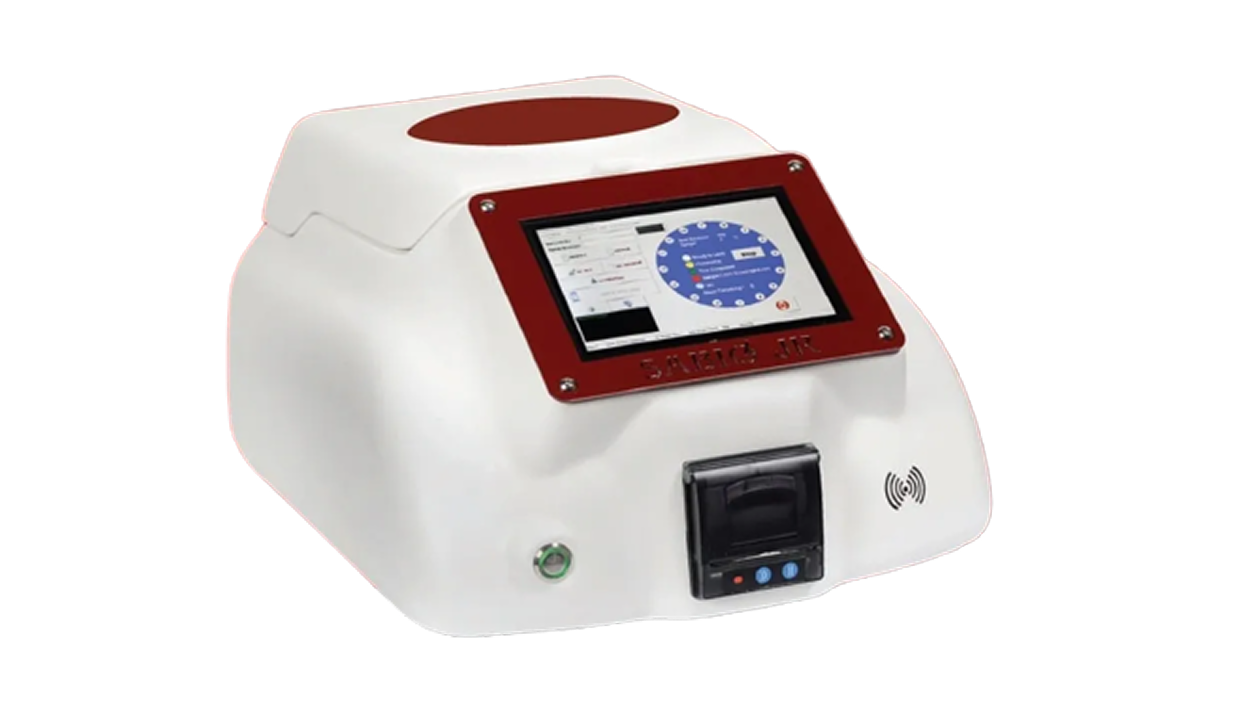

SABIO JR Automated ESR Analyzer

SABIO JR Automated ESR Analyzer is a bench top system for small & midium size laboratories. It has complete integration in the hematology laboratories by the direct determination of ESR from blood/EDTA samples with its smart and innovative technology combining “ccd cam” and internationally accepted Westergren method.

SABIO JR is completely cost effective, provides patient comfort and environment friendly since it is using same EDTA tubes coming from CBC tests.

16 sample loading positions, suitablity to continious loading for 19 minutes when you start running the instrument, being maintanence free, being environment-friendly, LCD touch screen and data transmission to LIS  are just some of the advanced features of the analyzer which provides laboratory confort and productivity.

General Properties of SABIO JR Automated ESR Analyzer

•  Use of the same CBC tubes. No dedicated citrate tube needed
• Westergren method by CCD camera
• Use of smart cards
• No reagents required, environmently friendly
• 16 sample loading positions
• Continuous loading of samples untill the first result
• First result available after 20 minutes and each following result within 5 sec.
• Advanced QC Management by LJ Graphics
• 7 inch LCD touch screen
• User friendly software
• Built-in Thermal Printer (Optional External Printer)
• LIS connection
• Optional Barcode reader

Technical Specifications

Principles

• Westergren method by CCD Camera

Sample Loading Positions

• 16, Direct loading of Blood/EDTA Samples

Throughput

• Up to48 samples/hour

Time to First Result

• First result in 20 minutes

Time to Result

• 3 seconds

Minimum Sample Volume

• 2 ml

Sample Test Volume

• 2 ml-4 ml

Barcode Reader

• External (optional)

Internal Printer

• Yes

LIS Communication

• Yes

Display

• Liquid Touch Screen, 800×600 pixel

Operating Environment

• Temperature:15°C-35°C,  Humidity: <80%

Power Requirement

• A.C. 110-230V <=300 VA   50/60Hz

Dimension

• 410mm(L) x 360mm(W) x 250mm(H)

Weight

• 7 KG
