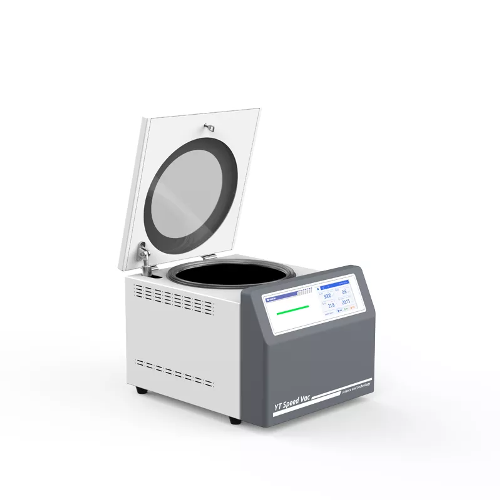

SD-25/SD-25C Vacuum Centrifugal Concentrator

This innovative concentrator features a high-definition LCD touch screen that displays critical operational parameters—including speed, temperature, vacuum, and running time—in real time. It employs a delayed start mechanism that activates the vacuum pump only after reaching a set speed, effectively preventing sample mixing. The system offers advanced vacuum control within a range of 0.1 to 1000 mbar with outstanding precision, while supporting tool-free 1.5/2 ml rotor stacking and programmable temperature and pressure settings for up to 36 custom programs. Additionally, it is designed for safety and ease of use with a fully sealed magnetic drive, an inductive electric self-suction door lock ensuring the cover is secure before operation, and compatibility with freeze-drying systems.

Compare

Key features：

1. High-definition LCD touch screen, simultaneously displaying operational parameters: speed, temperature, vacuum, and running time.

2. Delayed start: after reaching a fixed speed, Start the vacuum pump to effectively prevent sample mixing.

3. Fully automatic vacuum control system, vacuum setting range0.1~1000mbar, Control accuracy0.1mbar.

4. 1.5/2ml Rotor stacking for simultaneous use; rotor replacement without tools.

5. Programmable with temperature and pressure settings; capable of storing 36 programs

6. Compatible with various rotor heads; transparent glass window for easy observation.

7. Magnetic drive: maintenance-free, non-contact drive, fully sealed.

8. Safety in use: inductive electric self-suction door lock ensures the centrifugal concentrator can only start when the door cover is fully closed and locked.

9. Can be used in conjunction with freeze-drying systems.

SD-25/SD-25C Vacuum Centrifugal Concentrator

Ambient temperature type/Refrigerated type

Technical Parameter

Temperature range	Room Temperature~+80℃	-10℃~+80℃
Temperature Accuracy	士1℃
Max.Speed	2500rpm
Max.Capacity	6x100ml
Timer	0~99h59min
Vacuum control range	1~1000mbar
Main unit withstands vacuum levels	1mbar
Noise	≤55dBA	≤65dBA
Voltage	0.7kw	1.3kw
Power supply	220v,50Hz
Dimension(L×W×Hmm)	360448304mm	440653420mm

Adapter Rotor

Rotor Type	Rotor Volume	Rotor Type	Rotor Volume
Angle Rotor	42×1.5/2ml	Angle Rotor	8×50ml
Angle Rotor	108×1.5/2ml	Angle Rotor	6×100ml
Angle Rotor	48×5ml	Angle Rotor	16×20ml Sample vial
Angle Rotor	30×10ml	Angle Rotor	16×5ml+8×4ml+8×3ml
Angle Rotor	24×15ml	Microplate Rotor	2×96well

Category: Centrifuges Brand: Yingtai Instrument
