Key features：
1. High-definition LCD touch screen, simultaneously displaying operational parameters: speed, temperature, vacuum, and running time.
2. Delayed start: after reaching a fixed speed, Start the vacuum pump to effectively prevent sample mixing.
3. Fully automatic vacuum control system, vacuum setting range0.1~1000mbar, Control accuracy0.1mbar.
4. 1.5/2ml Rotor stacking for simultaneous use; rotor replacement without tools.
5. Programmable with temperature and pressure settings; capable of storing 36 programs
6. Compatible with various rotor heads; transparent glass window for easy observation.
7. Magnetic drive: maintenance-free, non-contact drive, fully sealed.
8. Safety in use: inductive electric self-suction door lock ensures the centrifugal concentrator can only start when the door cover is fully closed and locked.
9. Can be used in conjunction with freeze-drying systems

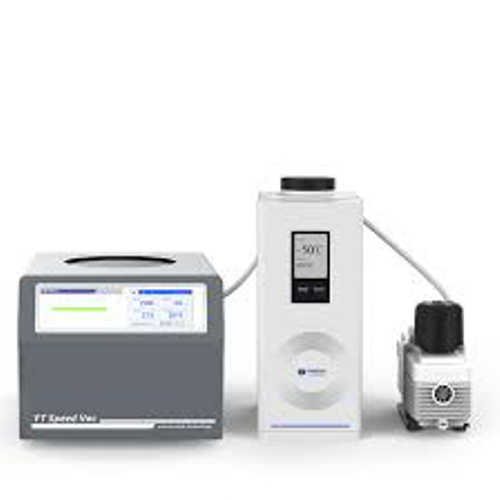

SD-33/SD-33C Vacuum Centrifugal Concentrator
Ambient temperature type/Refrigerated type
Technical Parameter
Adapter Rotor
Cold trap(The cold trap is optional and can be customized to meet the customer’s needs)
The evaporation rate is influenced not only by the energyinputbut also by the pumping speed of the vacuum pump. The mainfactor affecting the efficiency of the vacuum pump is the largeevaporative surface area of the sample, rather than thesample quantity or volume. To reduce evaporation time, werecommend using a cold trap in conjunction with centrifugalconcentration.This not only helps in condensing water vaporbut also increases the vapor density of organic solventsmakingit easierforcondensation to occur.
