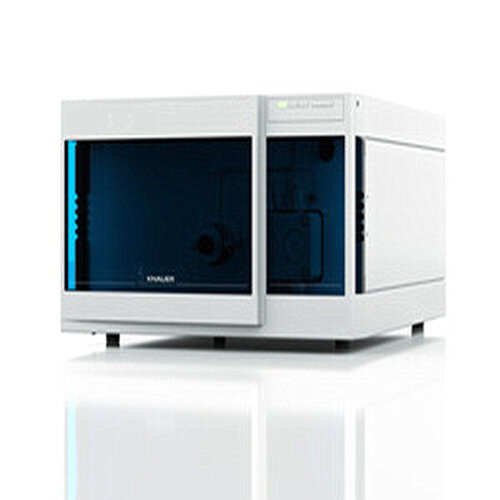

The SHP-11 Binary Gradient Pump uses technology to overcome the challenges of pumping IC/LC solvents at high pressure with low pulsation and is designed to fulfil the needs for high pressure mixing tasks.It contains two identical high-pressure pumps,a 2-channel inlet solvent selection valve and the new developed mixer, a low-volume mixing device. The integrated degasser and inline filter are completing the analytical IC/HPLC pump and turn this pump into a working horse in the lab.For biocompatible applications or ion chromatography, this pump is also available with a complete metal-free design.
Technical Specification of SHP-11 Binary Gradient Pump
| Pump head | 10ml |
| Flow rate range | 0.001-10ml/min |
| Maximum delivery pressure | 5800 psi/400 bar/40 Mpa |
| Wetted materials | GFP, FKM, PEEK, Sappire, Aluminiumoxide, Ruby, Zirconiumoxide |
| Mixing volume | 200µl |
| Flow rate increment | 0.001ml/min |
| Best working condition | 0.1-8.0 ml/min |
| Continuous working conditions | 0.1-4.0 ml/min |
| Pump head material | Ceramic |
