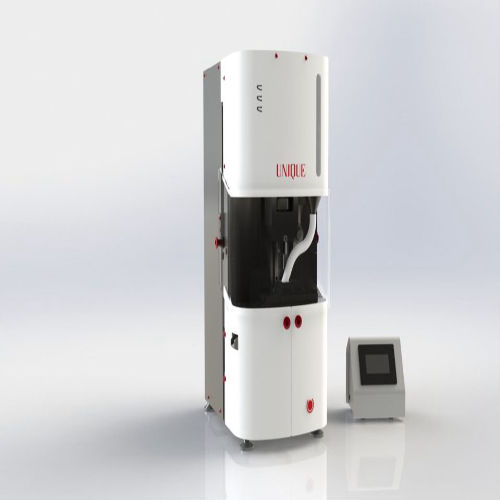

Single Punch Tablet Press
The power of the single punch tablet press, is enclosed in small dimensions but thanks to its sturdy construction the compression force reaches up to 50kN: perfect to fulfill the needs of the most innovative R&D laboratories and pharmacies which are looking for a prestigious and versatile punch.
Simple and sophisticated at the same time.
General Features
- Automatic single punch tablet press
- Structure in nickel plated stainless steel
- High precision needle bearing
- Stainless steel and thermoformed plastic external coating
- Upper sliding transparent polycarbonate opening
- External Touch-Screen monitor for instant check of production data
- Anodized anticorodal aluminum details
Technical Description
Compression area divided in three units. Central unit, nickel plate holder, upon request can also be supplied either in or stainless steel covered. The top unit with the upper punch which compresses the powder in the loading chamber; the lower part contrasts the compression and extraction of the punched tablet. Feeder anticorodal anodized aluminum.
Touch screen settings:
- Production speed
- Instant display of compression data
(optional for loading cell) - Test mode (single punch)
- Production mode (automatic production)
- Machine grounding with hopper sensor
(sensor is optional) - Alarm and operating led
Cleaning
Surfaces in contact with the product:
In accordance with current pharmaceutical and food legislation (certificates available upon request) washable with water and alcohol solution (60%).
Punches change and machine disassembly for cleaning: It is possible to change formats (punches and dies) in an easy and fast way without needing special tools.
