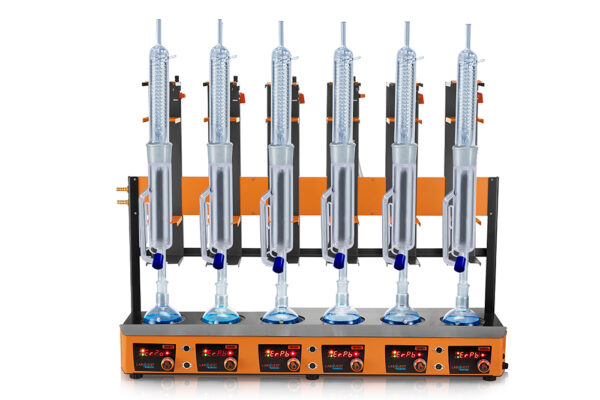

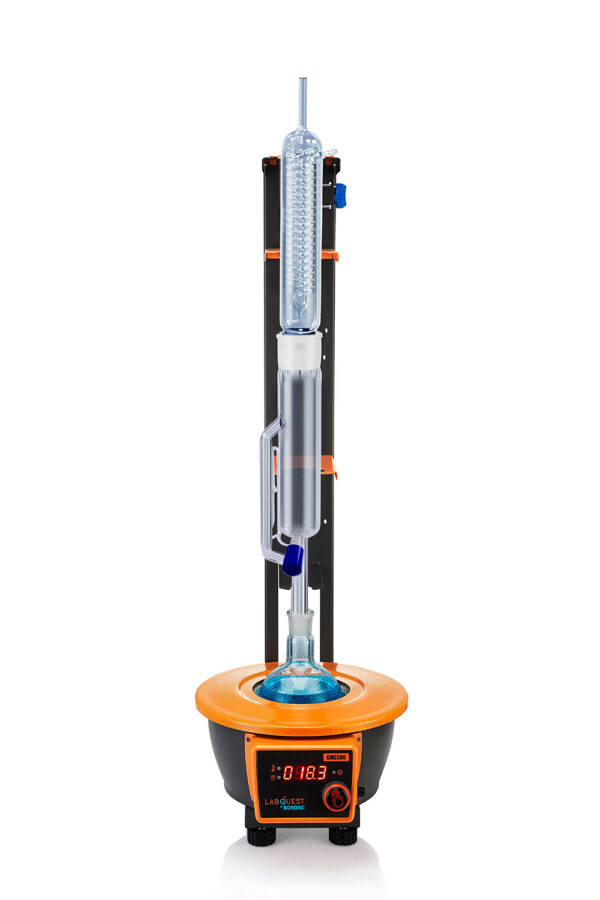

Soxhlet Apparatus

Add to wishlist

Compare

The Soxhlet Apparatus is designed for continuous solvent extraction of fats, oils, and other analytes from solid materials. It ensures efficient, automated refluxing, ideal for food, environmental, and industrial labs requiring accurate and reproducible extraction processes.

Compare

Ask for Price

Main Features

The only Soxhlet Apparatus with actual time setting and energy percentage display.
Safe with inbuilt safety control.
Auto heater cut off with visual & audio error indicator to use.
Available as a combined package of soxhlet glass parts and holders, for fastening the glass parts to the support rod.
Intelligent with LED display of time, safe temperature and energy percentage.
Serial heating unit with 6 individually adjustable heaters.
Digital energy regulator with 10 step power regulation.
One knob control button for precise setting of all parameters.

Feature	SOX012	SOX015	SOX062	SOX065
Model	SOX012	SOX015	SOX062	SOX065
Position	1	1	6	6
Flask Capacity (ml)	250	500	250	500
Extractor Capacity (ml)	100	200	100	200
Temperature Accuracy	±1°C	±1°C	±1°C	±1°C
Temperature Uniformity	±15°C	±15°C	±15°C	±15°C
Plate Temperature	Up to 320°C	Up to 320°C	Up to 320°C	Up to 320°C
Safe Temperature Setting	Yes	Yes	Yes	Yes
Display Timer	1–999 min	1–999 min	1–999 min	1–999 min
Dimensions (W × D × H) mm	200 × 300 × 800	200 × 300 × 800	1050 × 300 × 800	1050 × 300 × 800
Weight (Kgs)	7	7	15	15
Power (W)	400 W	400 W	2400 W	2400 W
