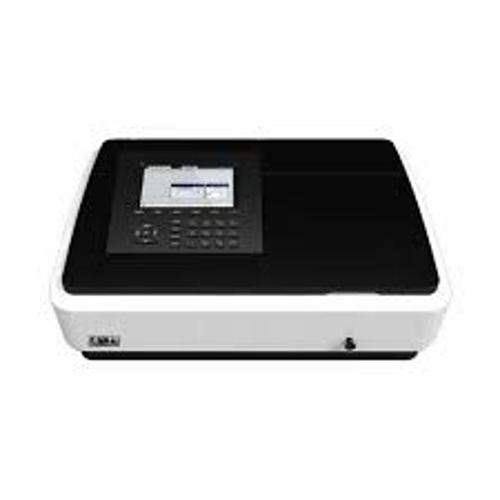

Spectrophotometer C-7000 Series

The Spectrophotometer C-7000 Series provides high-precision optical measurement, advanced data analysis, and user-friendly operation. It features a wide wavelength range, superior accuracy, and customizable settings, making it ideal for laboratories, research, and industrial applications requiring precise spectral analysis.

Compare

Ask for Price

Main Features

7 inch TFT screen and long life, more comfortable and easy-to-operate silicone
buttons.
Support USB storage and different data formats such as Excel, txt and image (PC
software). Users can output test data to flash memory, open and edit them on computers directly without any auxiliary software.
Standard RS232,USB(A) and USB(B) port.
High-efficiency holographic grating of 1200 lines/mm and low stray light.
The equipment has long-life socket type tungsten-halogen and deuterium lamps , can
switch the lamps according to test needs and record its working time automatically.
Socket type lamps make the replacement much easier.
Excellent silicon photodiode can guarantee the equipment is highly sensitive and
stable.
Huge sample chamber and various accessories can meet all kinds of needs.
Can be connected to printer directly and output test charts and data.
Powerful PC software (optional) can realize scanning function.

Feature	C-7000V	C-7000UV
Display	7-inch TFT screen	7-inch TFT screen
Wavelength Range	320 – 1100nm	190 – 1100nm
Spectral Bandwidth	2nm	2nm
Wavelength Resolution	0.1nm	0.1nm
Wavelength Accuracy	±0.3nm	±0.3nm
Wavelength Repeatability	≤0.2nm	≤0.2nm
Photometric Accuracy	0.3%T (0-100%T), ±0.002A(0-0.5A), ±0.004A(0-0.5A)	0.3%T (0-100%T), ±0.002A(0-0.5A), ±0.004A(0-0.5A)
Photometric Repeatability	≤0.15%T (0-100%T), 0.001A(0-0.5A), 0.002A (0.5-1A)	≤0.15%T (0-100%T), 0.001A(0-0.5A), 0.002A (0.5-1A)
Stray Light	≤0.05%T@220 nm, 360nm	≤0.05%T@220 nm, 360nm
Stability	±0.002 A/h@500nm	±0.002 A/h@500nm
Baseline Flatness	±0.002A	±0.002A
Noise	±0.0005A	±0.0005A
Wavelength Setting	Automatic	Automatic
Working Mode	T,A,C,E	T,A,C,E
Photometric Range	0-200%T, -0.3 – 3A, 0-9999C(0-9999F)	0-200%T, -0.3 – 3A, 0-9999C(0-9999F)
Detector	Solid Silicon Photodiode	Solid Silicon Photodiode
Software	Optional with extended functions of scanning and DNA/protein tests	Optional with extended functions of scanning and DNA/protein tests
Printer	Optional	Optional
Keypad	Silicone Buttons	Silicone Buttons
Data Port	RS232, USB(A),USB(B)	RS232, USB(A),USB(B)
Light Source	Tungsten Halogen Lamp	Tungsten Halogen/Deuterium Lamp
Power Requirements	110-220V, 50-60Hz	110-220V, 50-60Hz
Humidity Range	Less than 85%	Less than 85%
Shipping Dimensions and Weight	750630410mm, 21kg	750630410mm, 21kg
