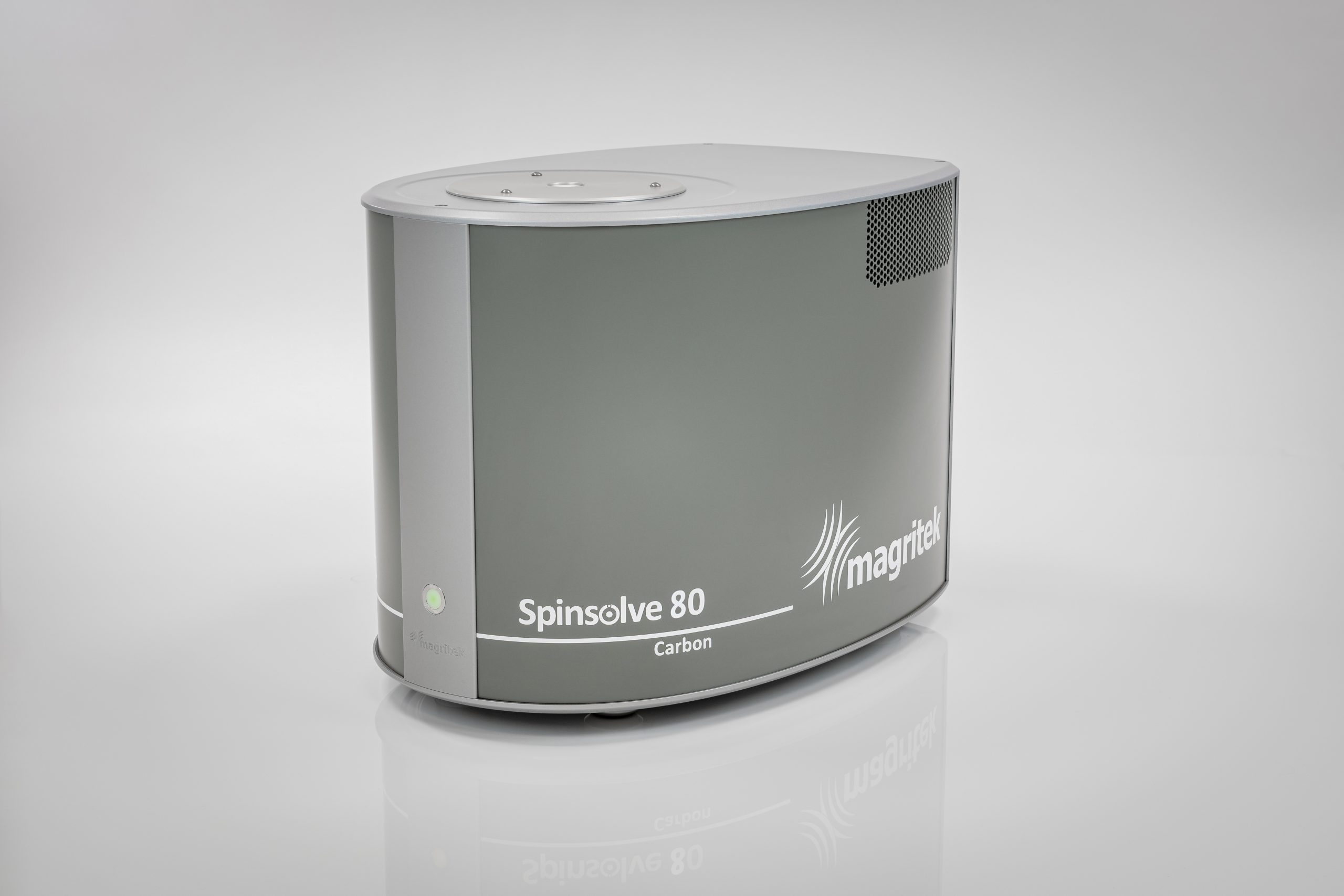

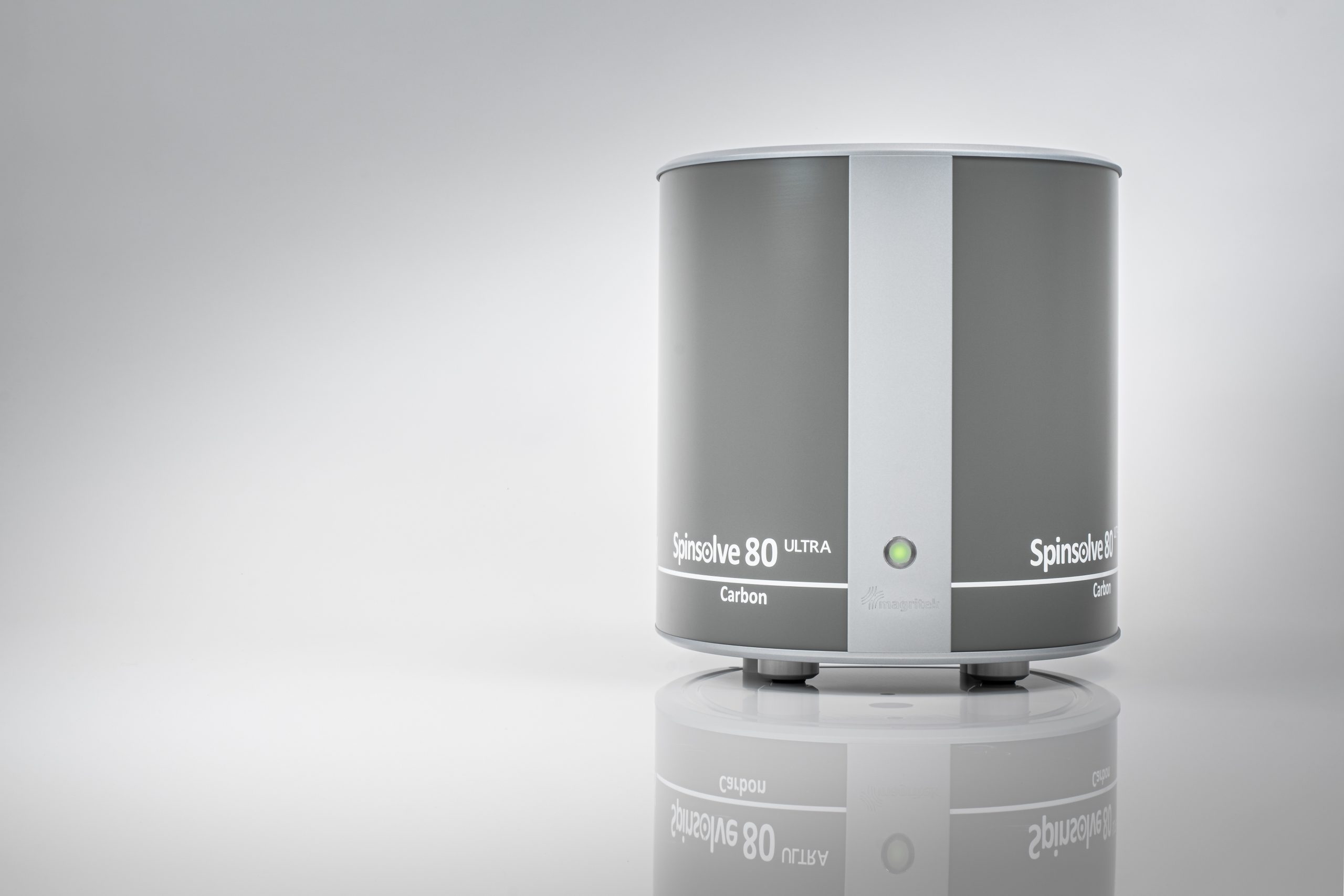

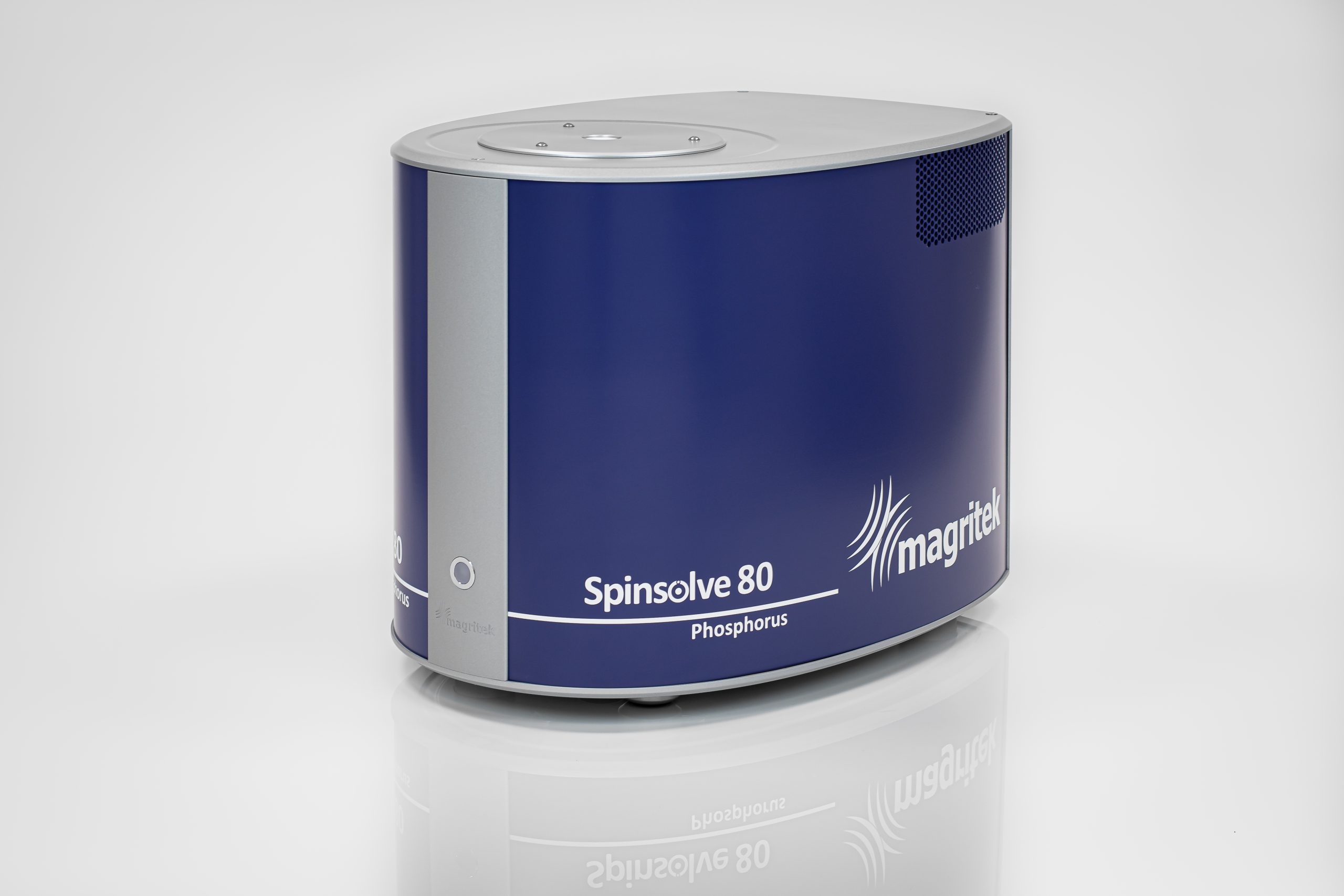

Spinsolve 80

Features Of Spinsolve 80

• Ultra-High Resolution:

  • Linewidth at 50%: <0.2 Hz
  • Linewidth at 0.55%: <8 Hz
  • Linewidth at 0.11%: <16 Hz
  • Ensures sharp, well-defined spectral peaks for precise NMR analysis.

• Exceptional Sensitivity:

  • 280:1 (Single channel) for 1% ethylbenzene, delivering high signal-to-noise clarity.
  • 200:1 (Dual channel) for 1% ethylbenzene, enabling reliable multi-nuclei analysis.

• Advanced 3D PFG Gradients:

  • Optimized for gradient-enhanced NMR methods, improving spectral resolution and artifact suppression.
  • Optional PFG gradients for diffusion spectroscopy (>0.5 T/m) for high-precision diffusion measurements.

• Cryogen-Free Operation:

  • Eliminates the need for liquid helium or nitrogen, reducing operational costs and maintenance.

• External Hardware Lock:

  • Provides outstanding frequency stability without requiring deuterated solvents, simplifying sample preparation.

• Unmatched Stability & Performance:

  • Delivers long-term operational reliability with minimal drift, ideal for continuous research applications.

• Real-Time Reaction Monitoring:

  • Seamlessly integrates into experimental setups for on-line reaction analysis, enhancing workflow efficiency.

• User-Friendly & Automation-Ready:

  • Intuitive operation for both novice and expert users.
  • Fully compatible with automatic sample changers, enabling high-throughput analysis.

• Compact & Durable Design:

  • Dimensions: 58 x 43 x 40 cm (23” x 17” x 16”)
  • Weight: 72.5 kg (160 lb), making it portable and easy to integrate into lab spaces.

• Precision-Validated Sensitivity Measurement:

  • Sensitivity determined in a single scan on a 1% ethylbenzene sample in deuterated chloroform.
  • Signal-to-noise ratio calculated using the methylene group signal, ensuring reproducibility and accuracy.
