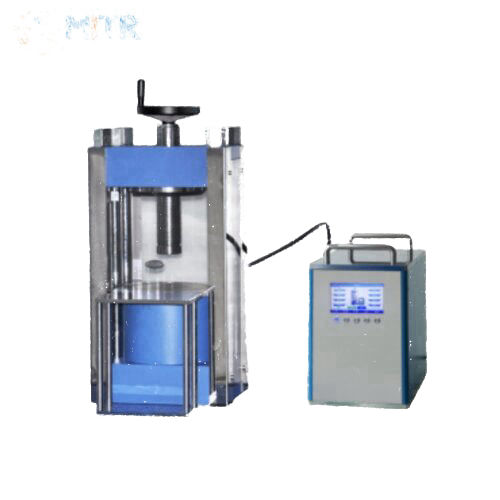

Split Electric Tablet Press is one of the ideal equipment for processing granular raw materials into tablets or granules in the pharmaceutical, chemical, food, and electronic industries. It is suitable for small batch production, laboratories, hospitals, and other departments to press pharmaceutical tablets, coal catalysts, sugar tablets, calcium tablets, coffee tablets, powder metallurgy, electronic components, and various agricultural fertilizer tablets.
Technical Specification of Split Electric Tablet Press
| Model | PCD-40S | PCD-65S | PCD-100S | PCD-150S | PCD-200S |
| Pressure range | 0-40T | 0-65T | 1-100T | 1-150T | 1-200T |
| Piston diameter | Cylinder diameterφ130mm(d) | Cylinder diameterφ160mm(d) | Cylinder diameterφ200mm (d) | Cylinder diameterφ250mm (d) | Cylinder diameterφ290mm (d) |
| Space dimensions(MXN) mm | 160X300 | 220X300 | 260X250
Can be equipped with heightened columns |
285X290
Can be equipped with heightened columns |
290X300
Can be equipped with heightened columns |
| Dimensions(LXWXH) mm | 500X700X800 | 580X700X800 | 850X500X950 | 950X600X1000 | 1000X650X1050 |
| Weight | 200kg | 280kg | 520kg | 620kg | 850kg |
| Pressure process | Program pressurization-program pressure maintenance-timed pressure release | ||||
| Pressure holding time | 1 to 8 seconds | ||||
| Pressure conversion | The program automatically converts the pressure on the sample | ||||
| LCD display | 7-inch LCD screen | ||||
| Equipment protection | Steel plate protection with plexiglass door | ||||
| Cylinder stroke | 50mm (T) | ||||
| Voltage | 1500W(220V/110VCan be customized) | ||||
